GP ELITE Single 8" Compact Glue it & Screw It Sub Enclosure

Product Description

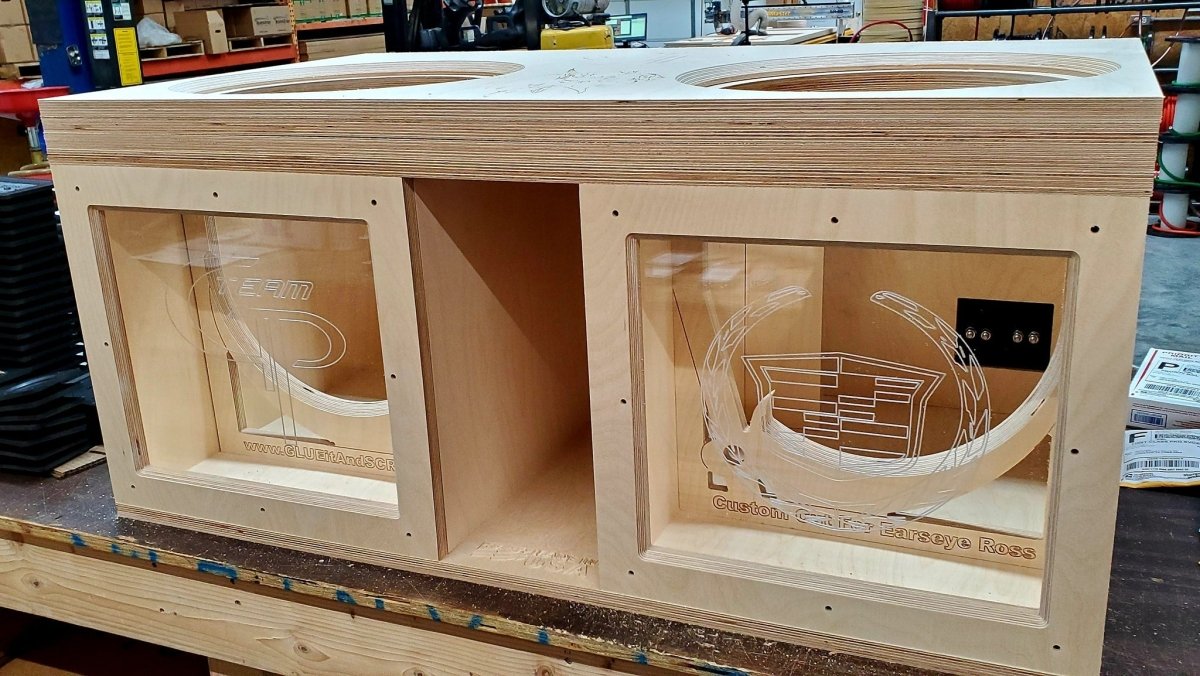

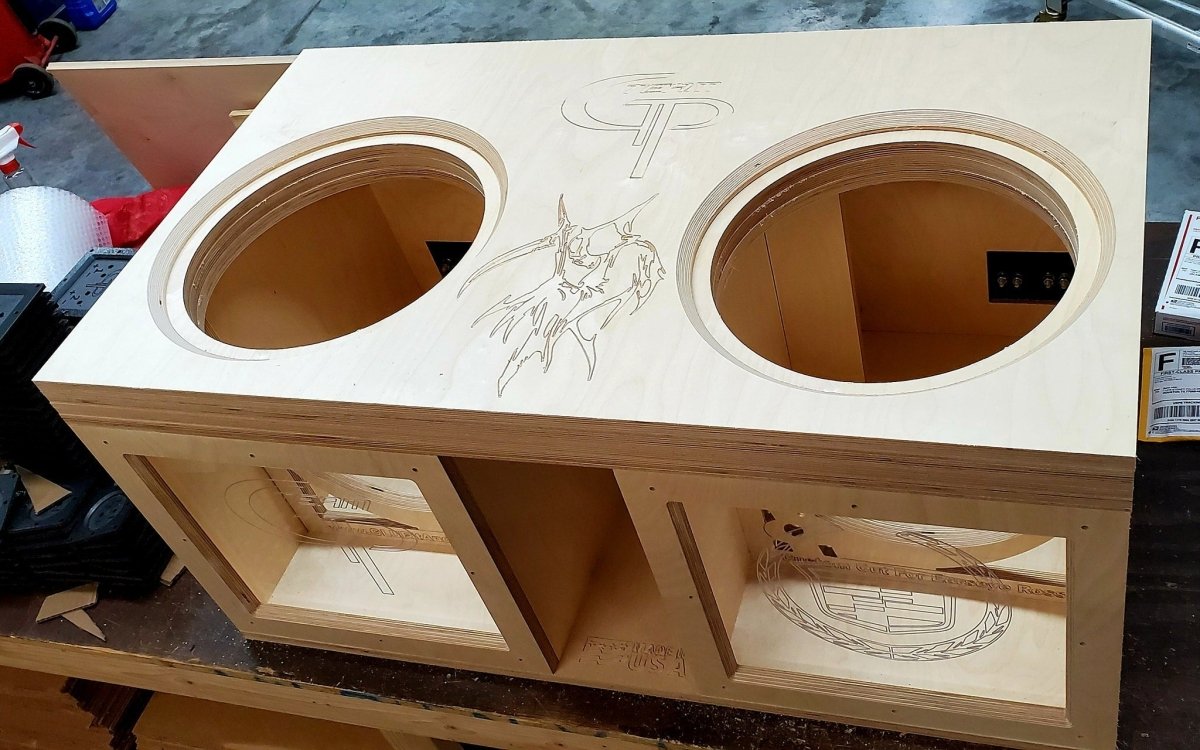

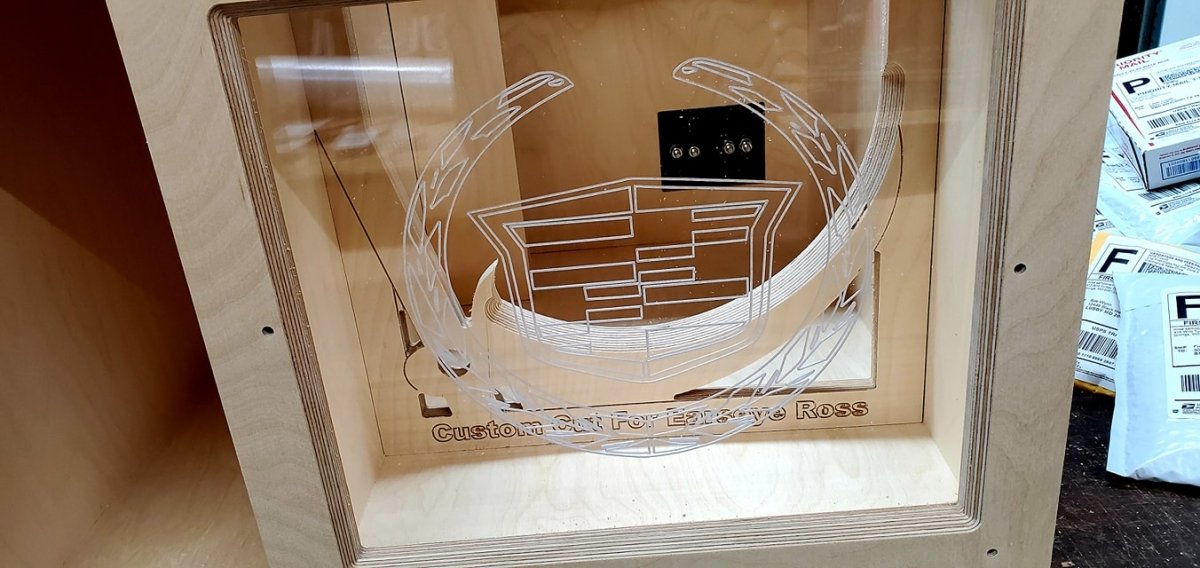

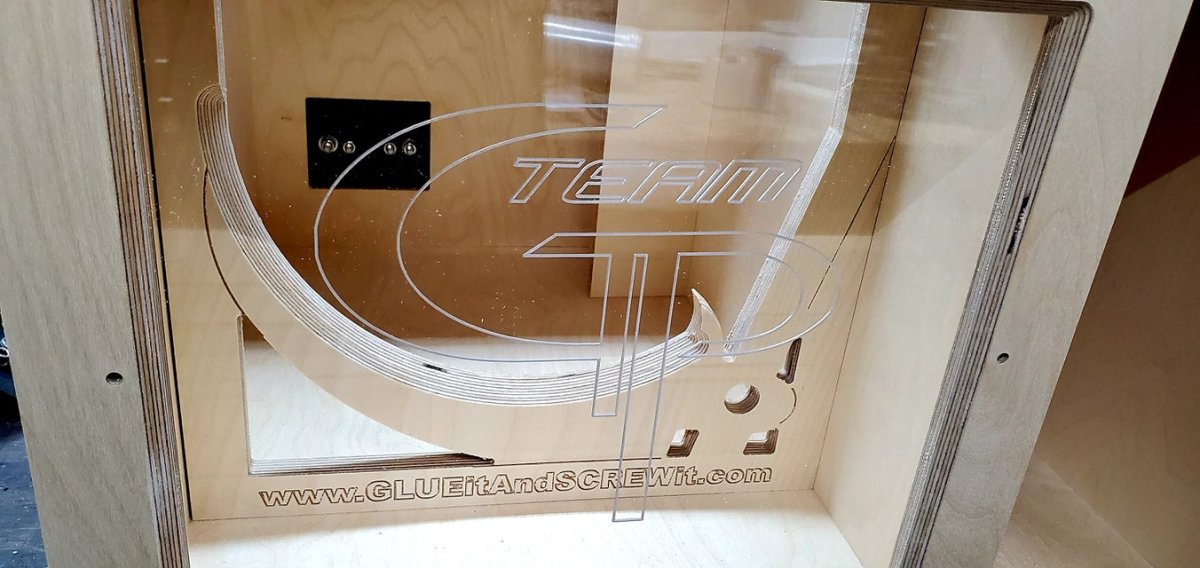

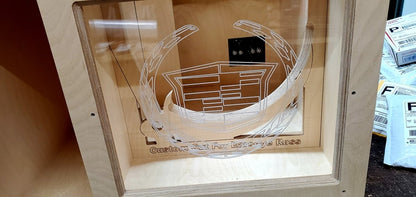

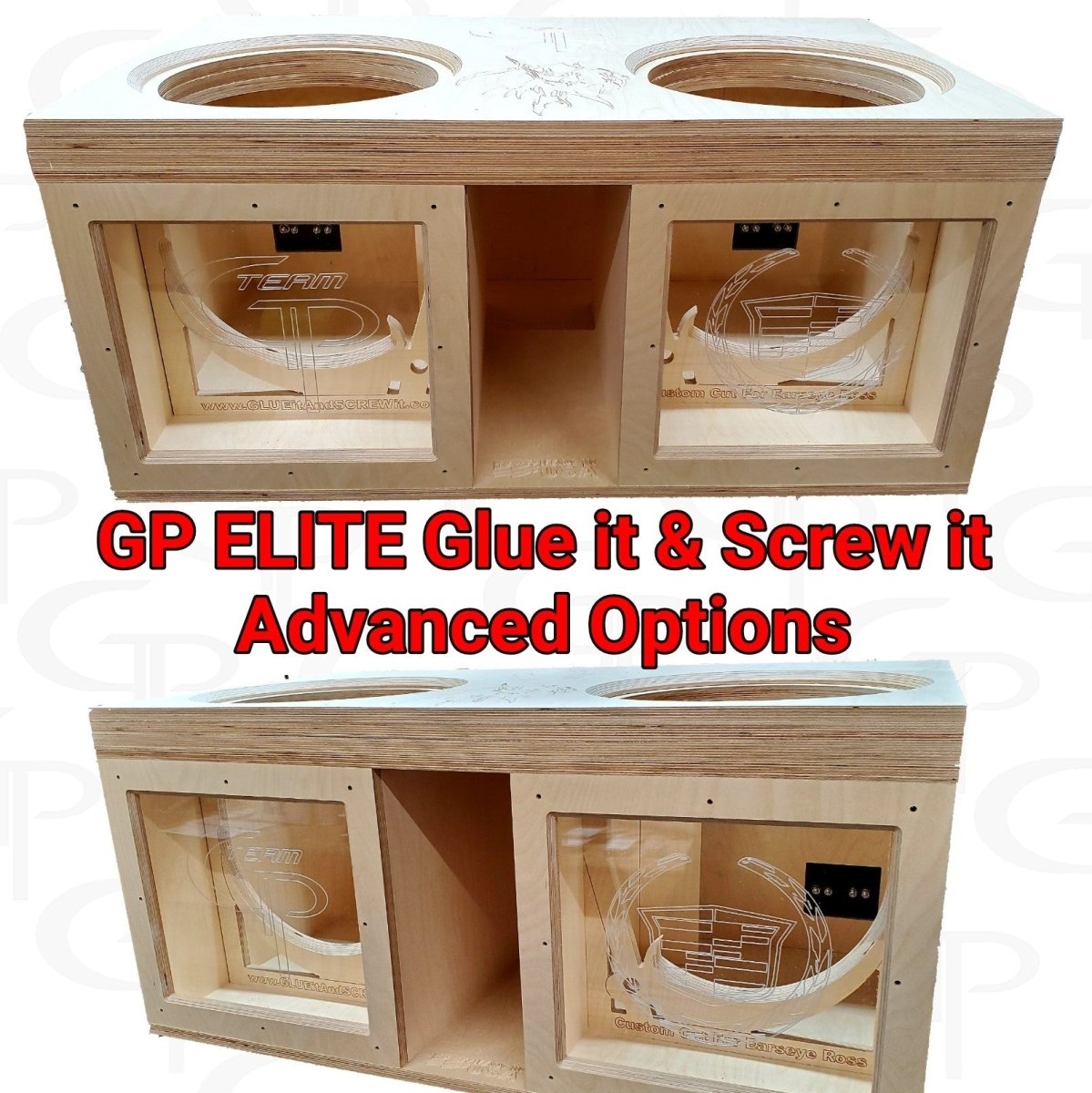

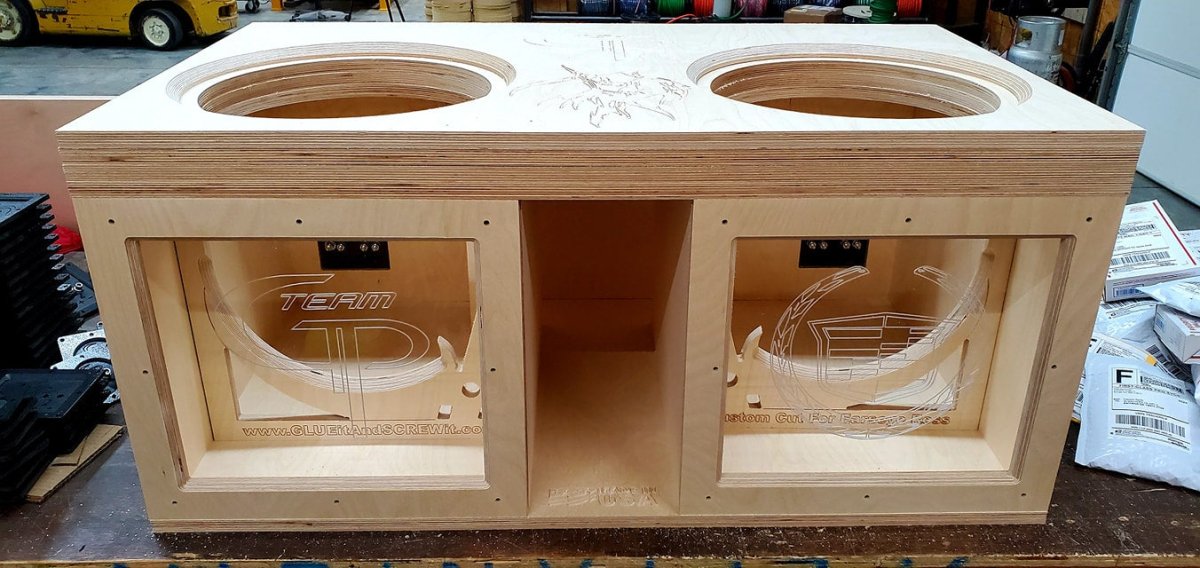

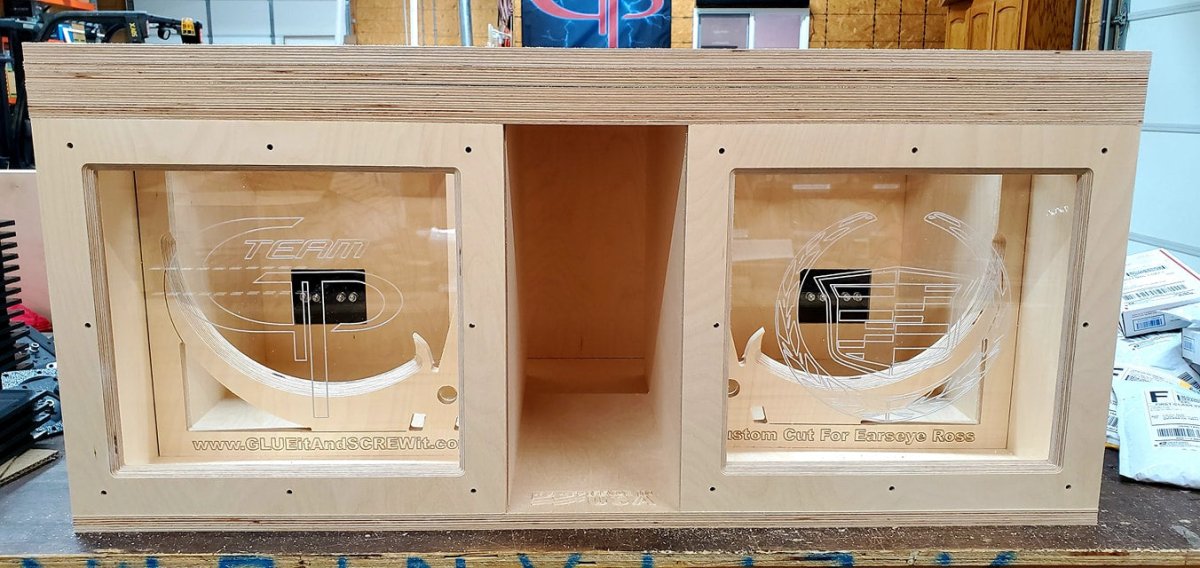

GP ELITE ADVANCED OPTION ENCLOSURES

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Below is estimated enclosure dimensions. Tuning will change the enclosure sizes slightly. Based off your options chosen, if anything is drastically different from the dimensions noted below, we will call you to verify fitment.

39hz

Box External Dimensions Width x Height x Depth	16.00" x 11.00" x 11.39"
Material Thickness	0.75"
Net Internal Volume	0.60 ft3
Tuning Frequency	39 Hz
Port Area	6.60 inch2
Port Inlet Width x Height	0.69" x 9.50"
Port Length	16.33"

________________________________________________________________________________________________

37hz

Box External Dimensions Width x Height x Depth	16.00" x 11.00" x 11.59"
Material Thickness	0.75"
Net Internal Volume	0.60 ft3
Tuning Frequency	37 Hz
Port Area	6.60 inch2
Port Inlet Width x Height	0.69" x 9.50"
Port Length	18.49"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	16.00" x 11.00" x 11.85"
Material Thickness	0.75"
Net Internal Volume	0.60 ft3
Tuning Frequency	35 Hz
Port Area	6.60 inch2
Port Inlet Width x Height	0.69" x 9.50"
Port Length	21.03"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	16.00" x 11.00" x 12.17"
Material Thickness	0.75"
Net Internal Volume	0.60 ft3
Tuning Frequency	33 Hz
Port Area	6.60 inch2
Port Inlet Width x Height	0.69" x 9.50"
Port Length	24.05"
