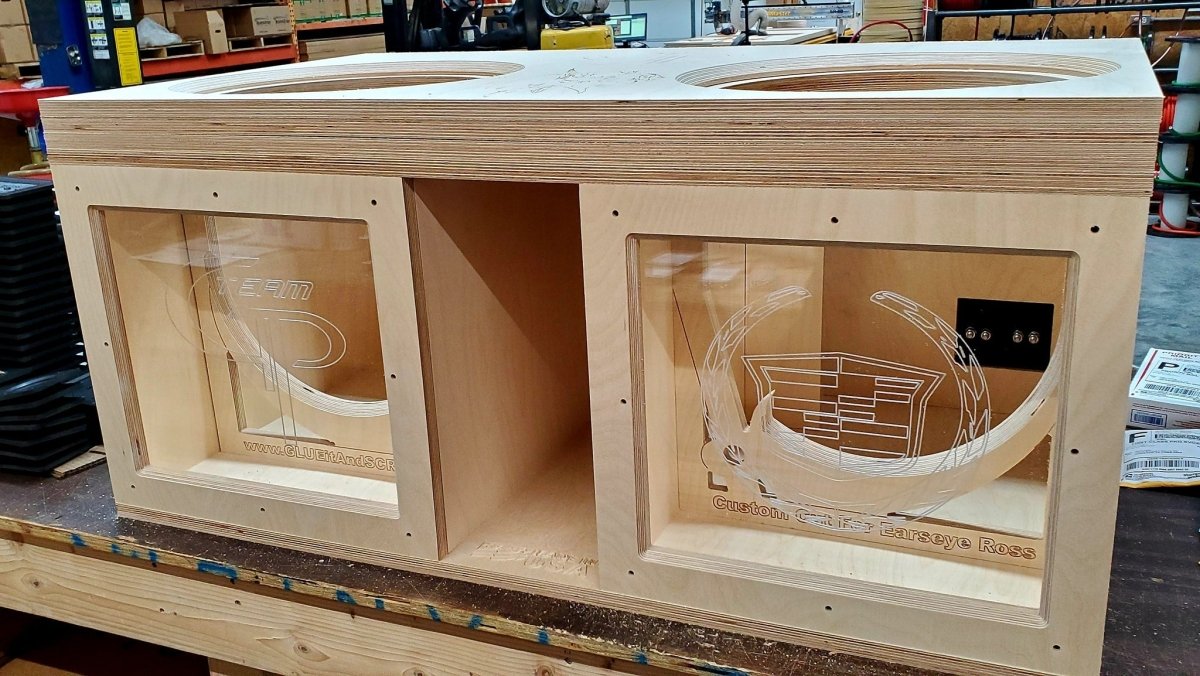

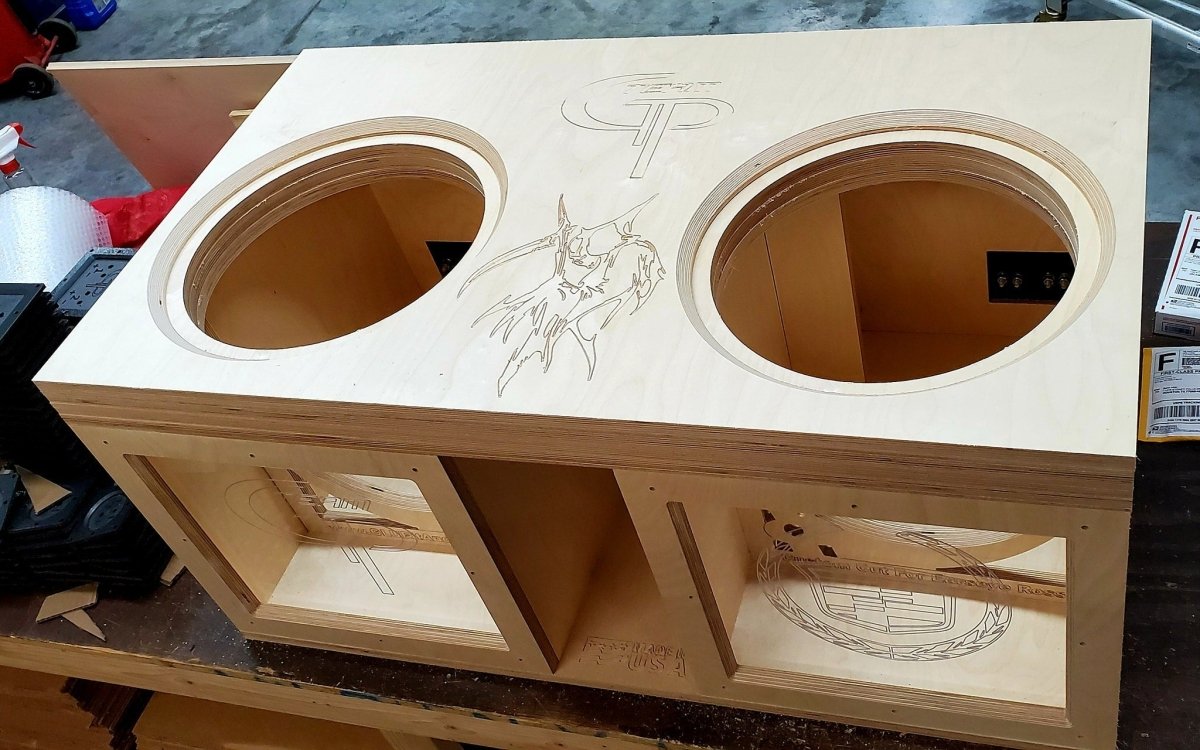

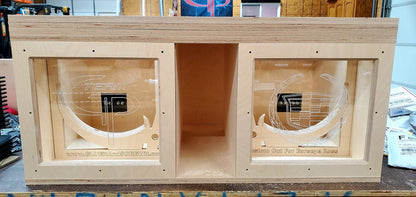

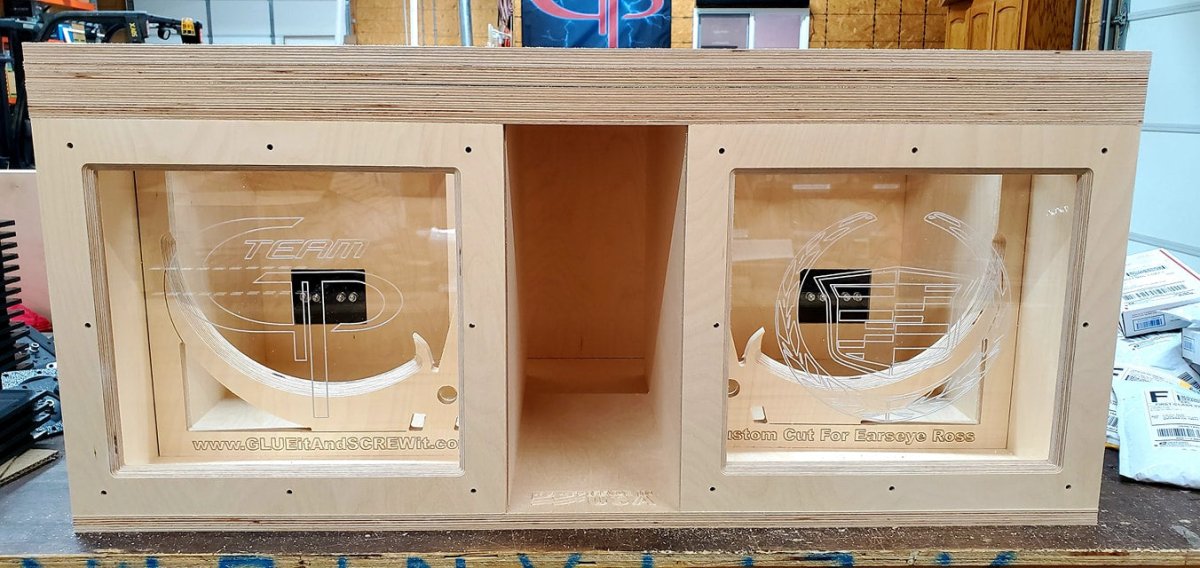

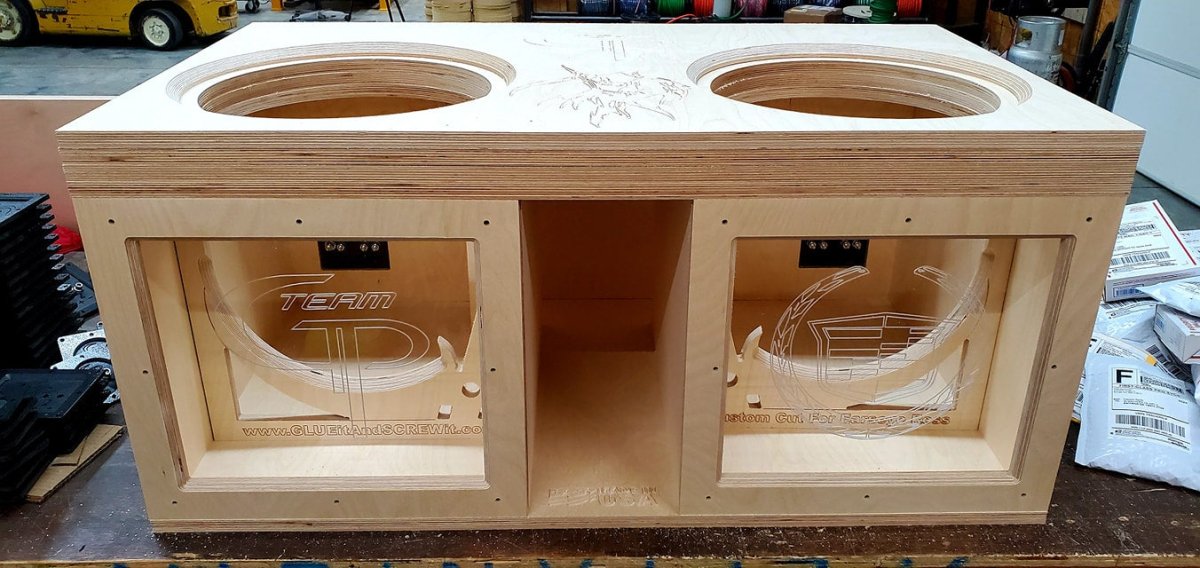

GP ELITE Dual 8" Compact High Performance Glue it & Screw It Sub Enclosure

Product Description

GP Elite Advanced Options

NOTE* Below is estimated enclosure dimensions. Tuning will change the enclosure sizes slightly. Based off your options chosen, if anything is drastically different from the dimensions noted below, we will call you to verify fitment.

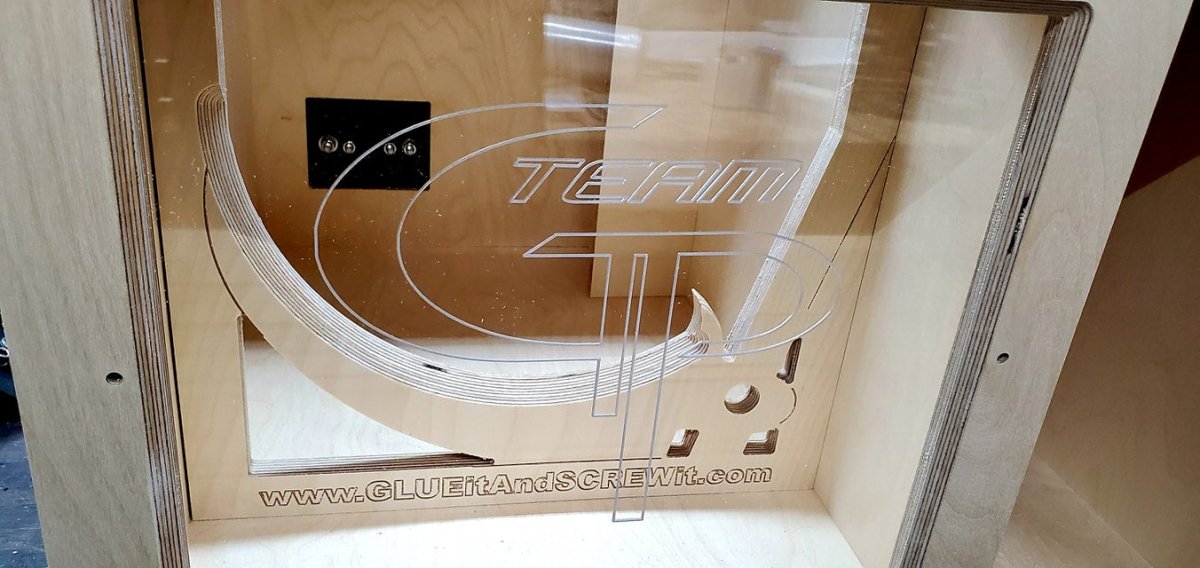

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

37hz

Box External Dimensions Width x Height x Depth	26.00" x 11.00" x 16.28"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	37 Hz
Port Area	20.25 inch2
Port Inlet Width x Height	2.13" x 9.50"
Port Length	21.05"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	26.00" x 11.00" x 16.65"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	35 Hz
Port Area	20.25 inch2
Port Inlet Width x Height	2.13" x 9.50"
Port Length	24.17"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	26.00" x 11.00" x 17.13"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	33 Hz
Port Area	20.25 inch2
Port Inlet Width x Height	2.13" x 9.50"
Port Length	27.87"

________________________________________________________________________________________________

31hz

Box External Dimensions Width x Height x Depth	26.00" x 11.00" x 17.72"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	31 Hz
Port Area	20.25 inch2
Port Inlet Width x Height	2.13" x 9.50"
Port Length	32.32"

________________________________________________________________________________________________

29hz

Box External Dimensions Width x Height x Depth	27.00" x 11.00" x 17.81"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	29 Hz
Port Area	20.25 inch2
Port Inlet Width x Height	2.13" x 9.50"
Port Length	37.71"
