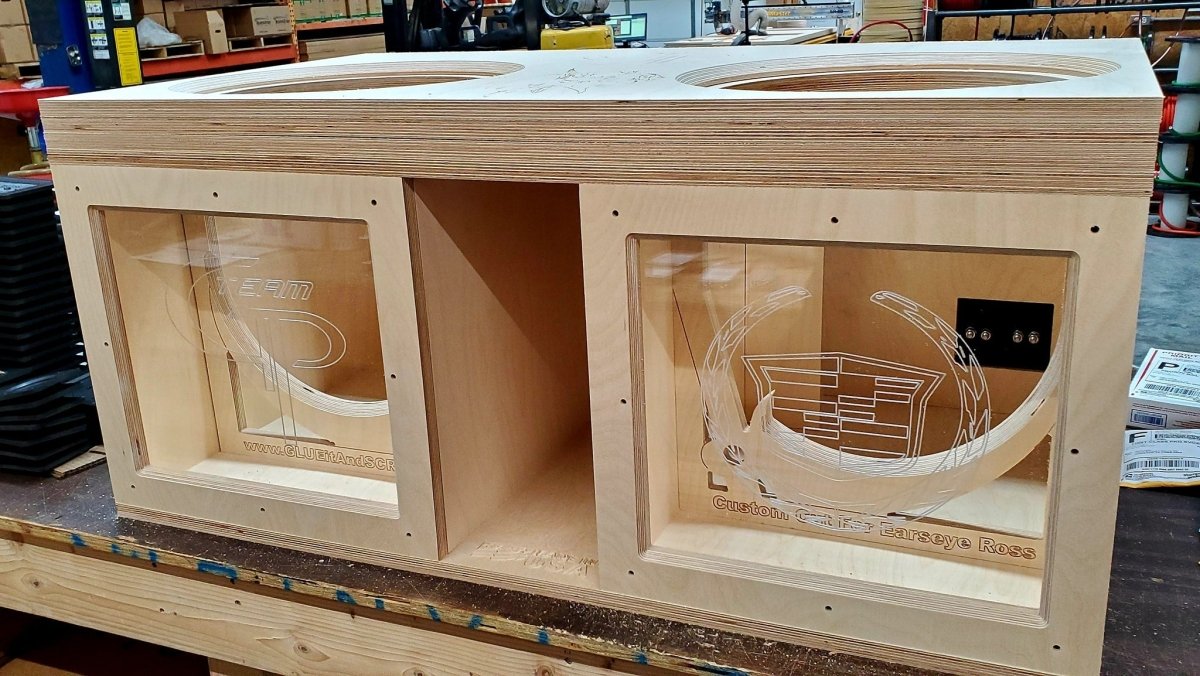

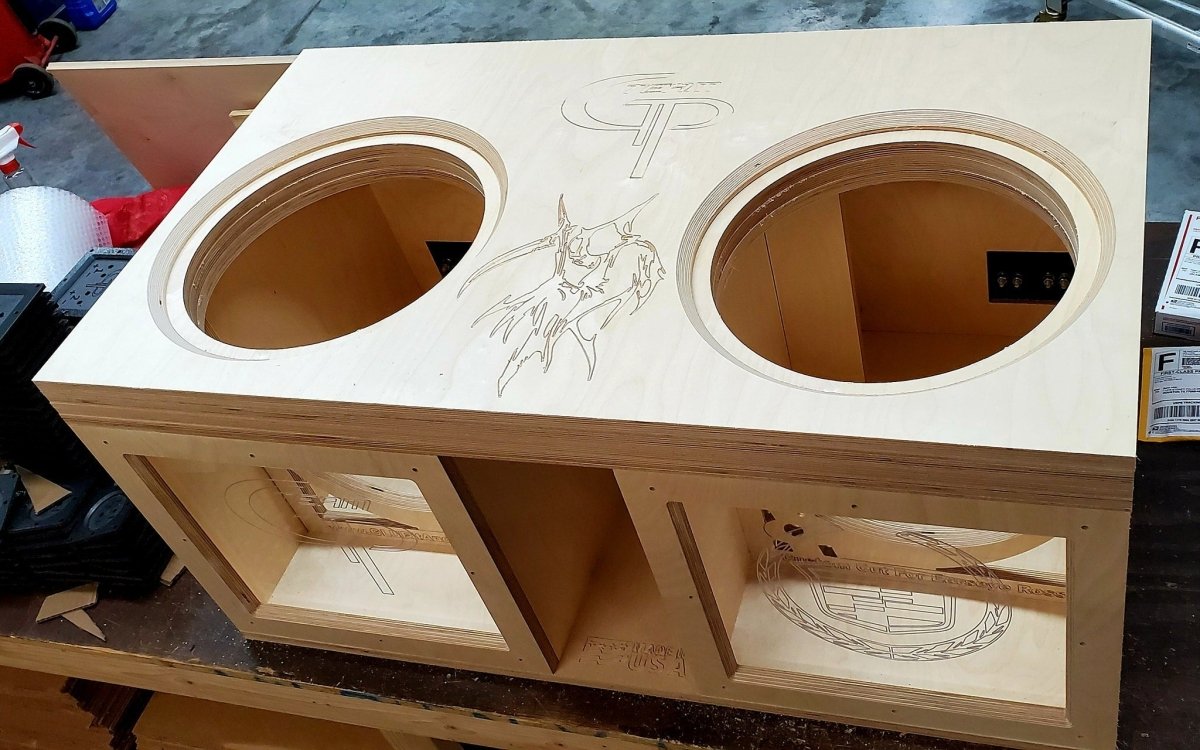

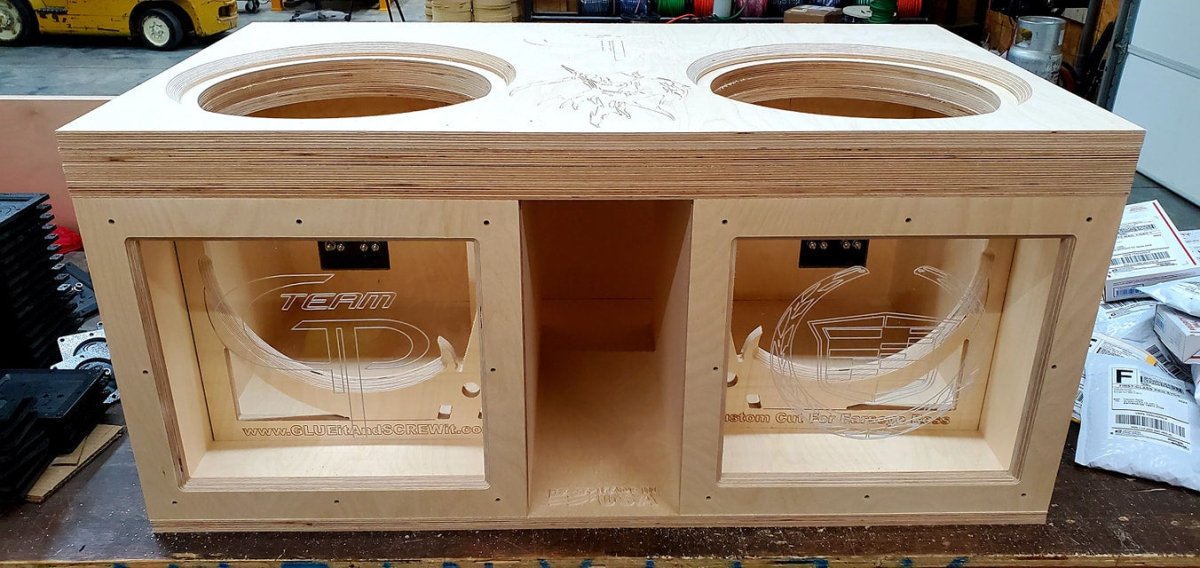

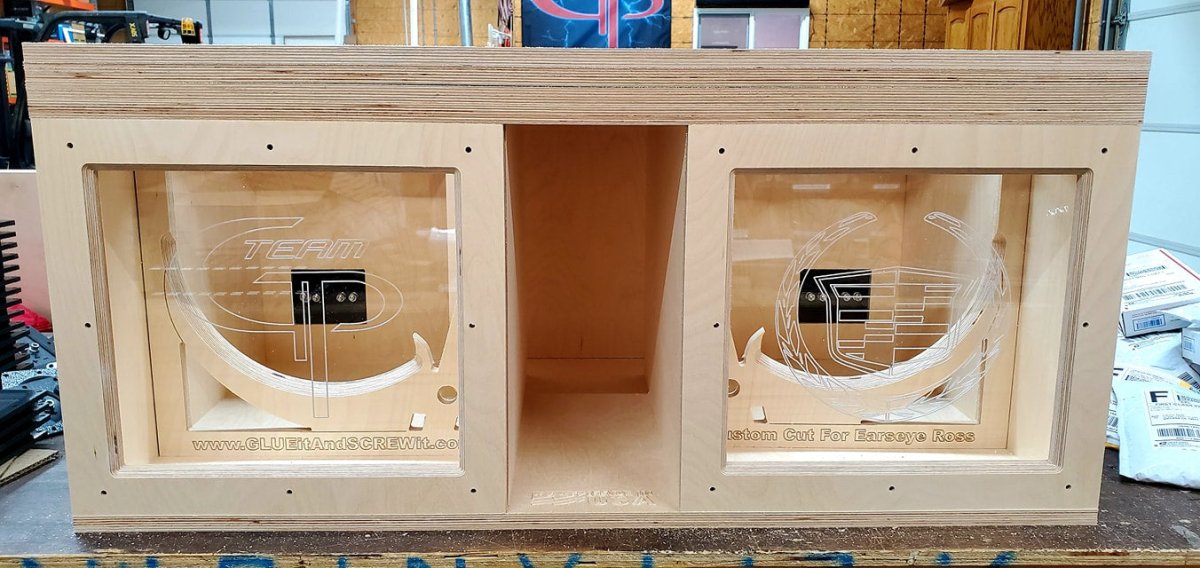

GP ELITE Dual 15" High Output XL Glue it & Screw It Sub Enclosure

Product Description

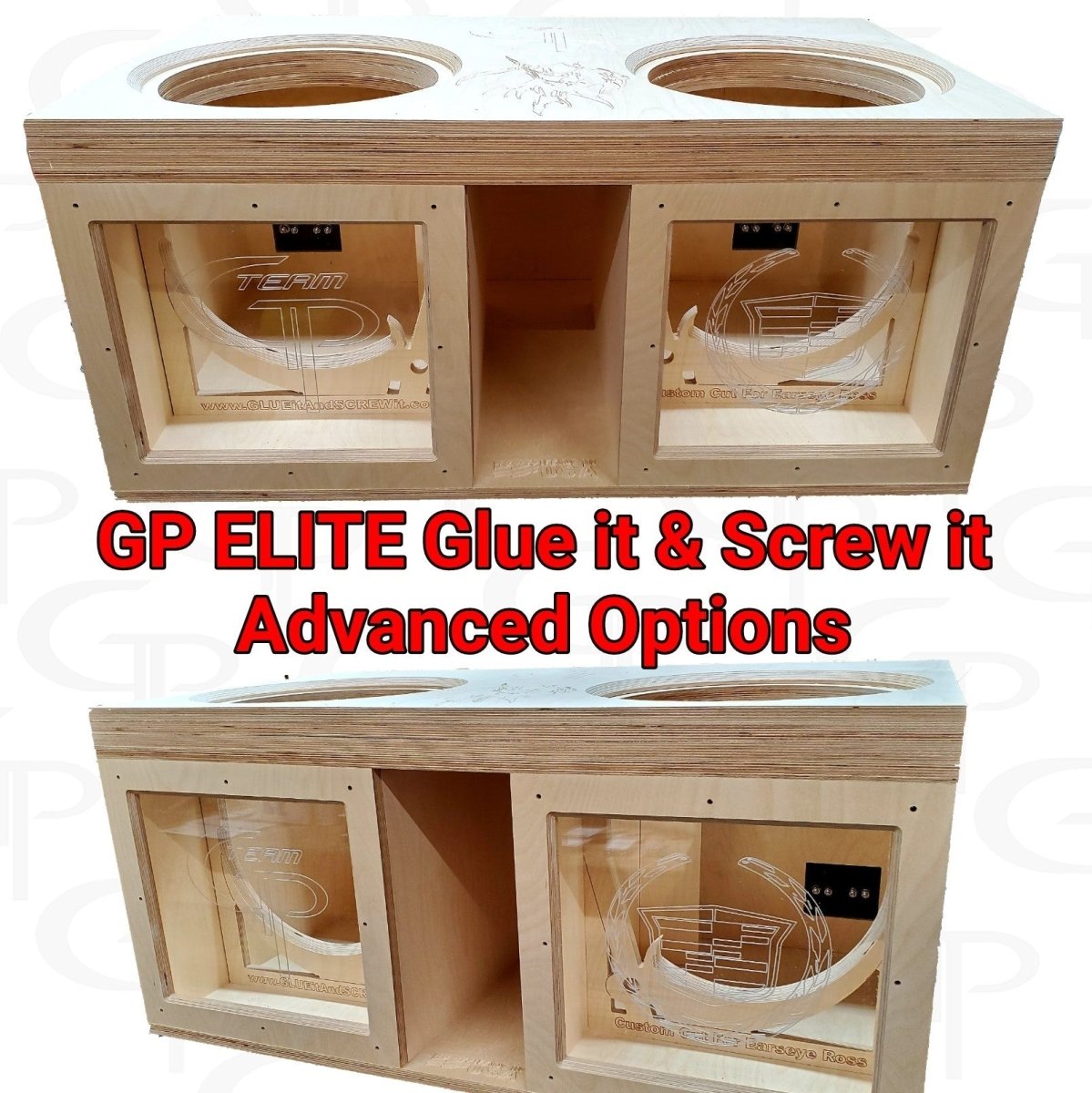

GP Elite Advanced Options

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly. All are desugned to order per the subs you are using, be sure and note your subs.

_______________________________________

37 hz

Box External Dimensions Width x Height x Depth	46.00" x 18.00" x 26.46"
Material Thickness	0.75"
Net Internal Volume	8.50 ft3
Tuning Frequency	37 Hz
Port Area	136.00 inch2
Port Inlet Width x Height	8.24" x 16.50"
Port Length	17.25"

_______________________________________

35hz

Box External Dimensions Width x Height x Depth	46.00" x 18.00" x 27.20"
Material Thickness	0.75"
Net Internal Volume	8.50 ft3
Tuning Frequency	35 Hz
Port Area	136.00 inch2
Port Inlet Width x Height	8.24" x 16.50"
Port Length	20.95"

_______________________________________

33hz

Box External Dimensions Width x Height x Depth	46.00" x 18.00" x 28.11"
Material Thickness	0.75"
Net Internal Volume	8.50 ft3
Tuning Frequency	33 Hz
Port Area	136.00 inch2
Port Inlet Width x Height	8.24" x 16.50"
Port Length	25.34"

_______________________________________

31hz

Box External Dimensions Width x Height x Depth	46.00" x 18.00" x 29.21"
Material Thickness	0.75"
Net Internal Volume	8.50 ft3
Tuning Frequency	31 Hz
Port Area	136.00 inch2
Port Inlet Width x Height	8.24" x 16.50"
Port Length	30.61"

_______________________________________

29 hz

Box External Dimensions Width x Height x Depth	46.00" x 18.00" x 30.58"
Material Thickness	0.75"
Net Internal Volume	8.50 ft3
Tuning Frequency	29 Hz
Port Area	136.00 inch2
Port Inlet Width x Height	8.24" x 16.50"
Port Length	37.01"
