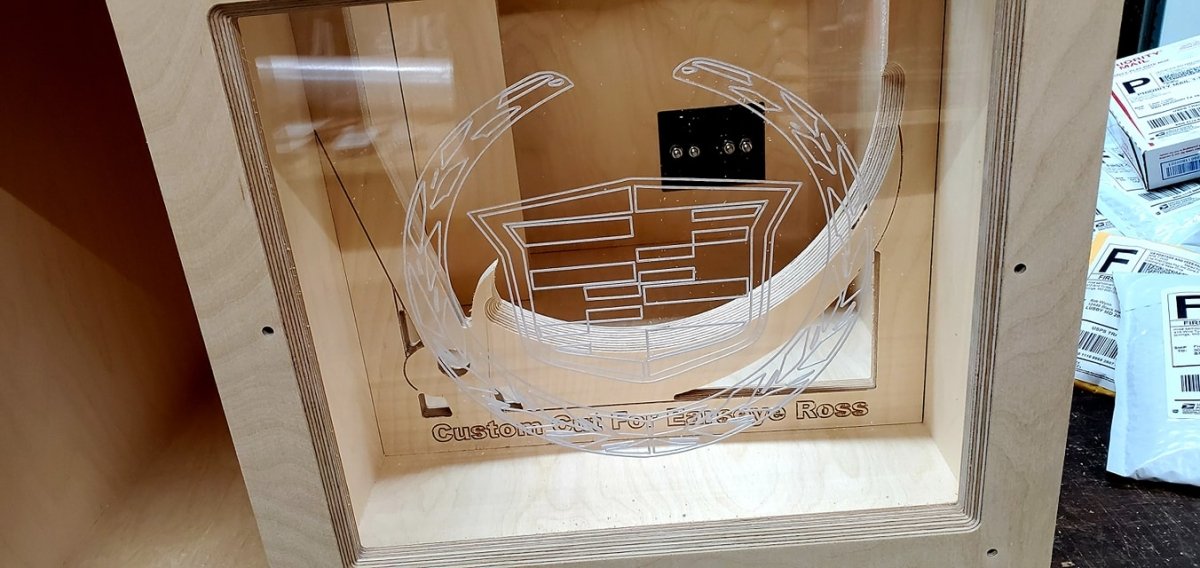

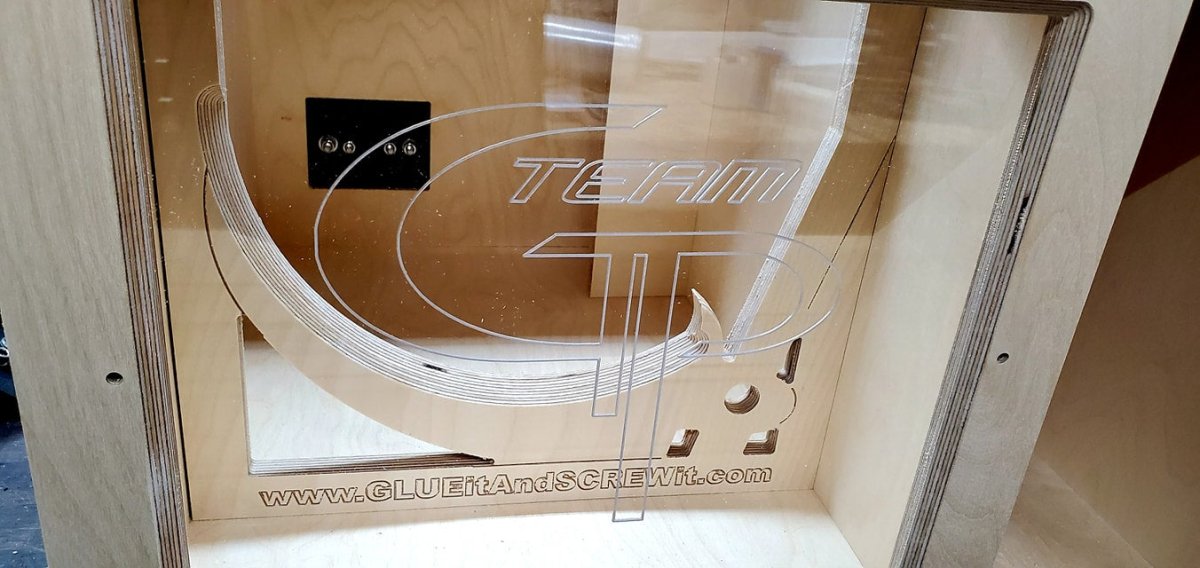

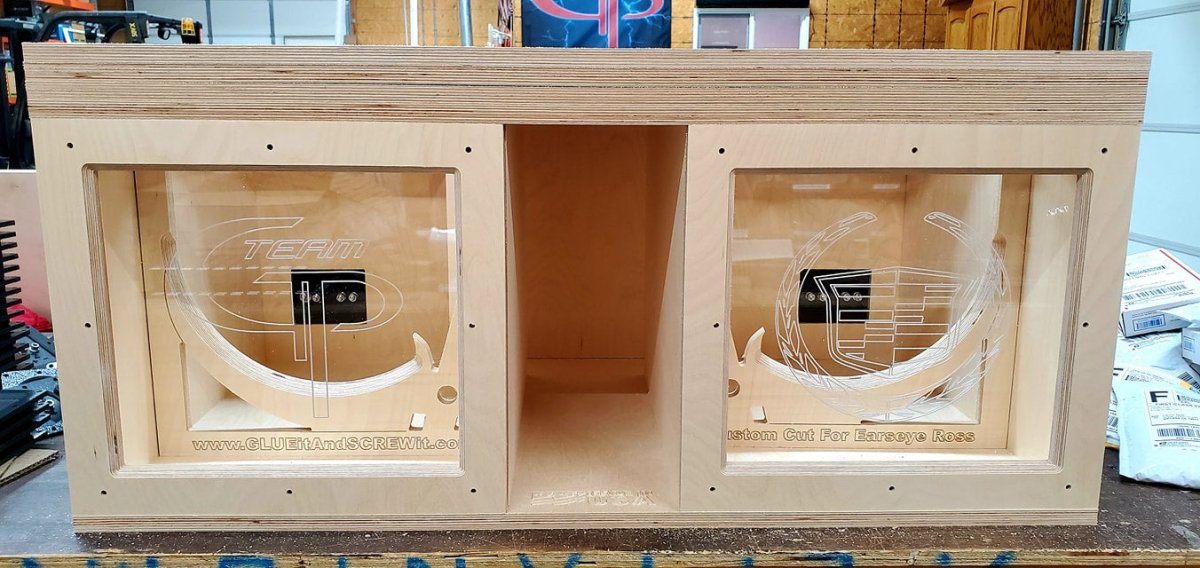

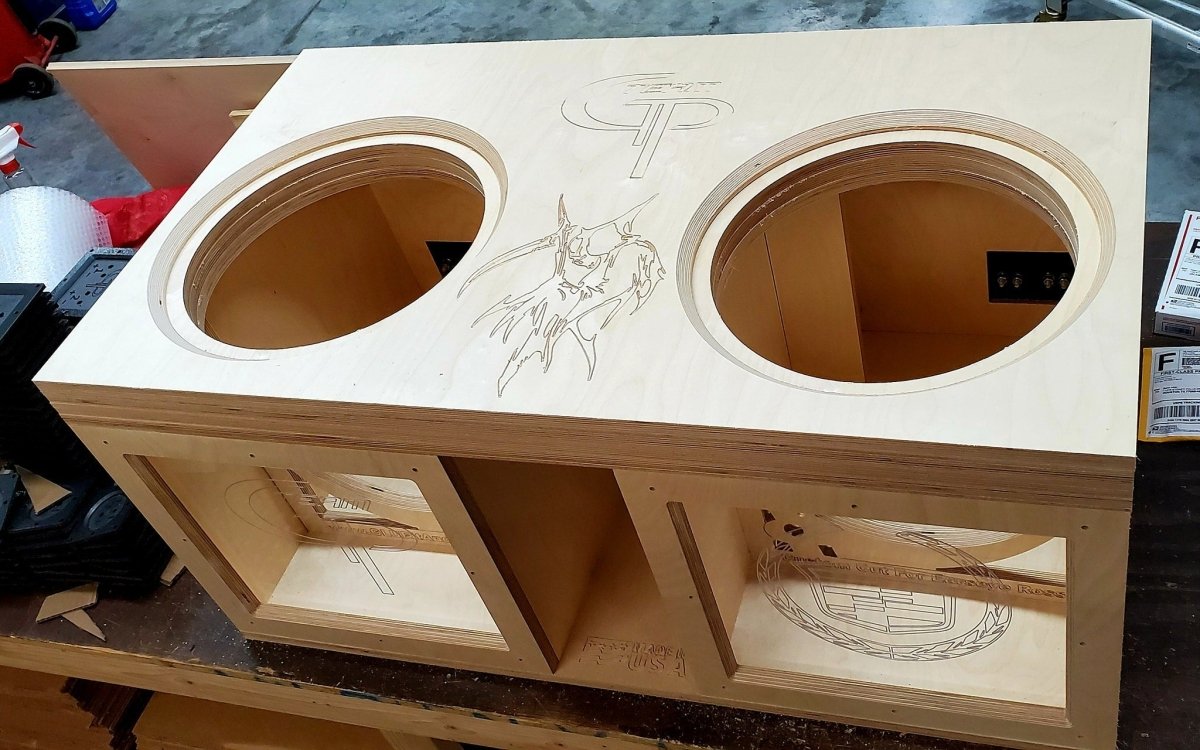

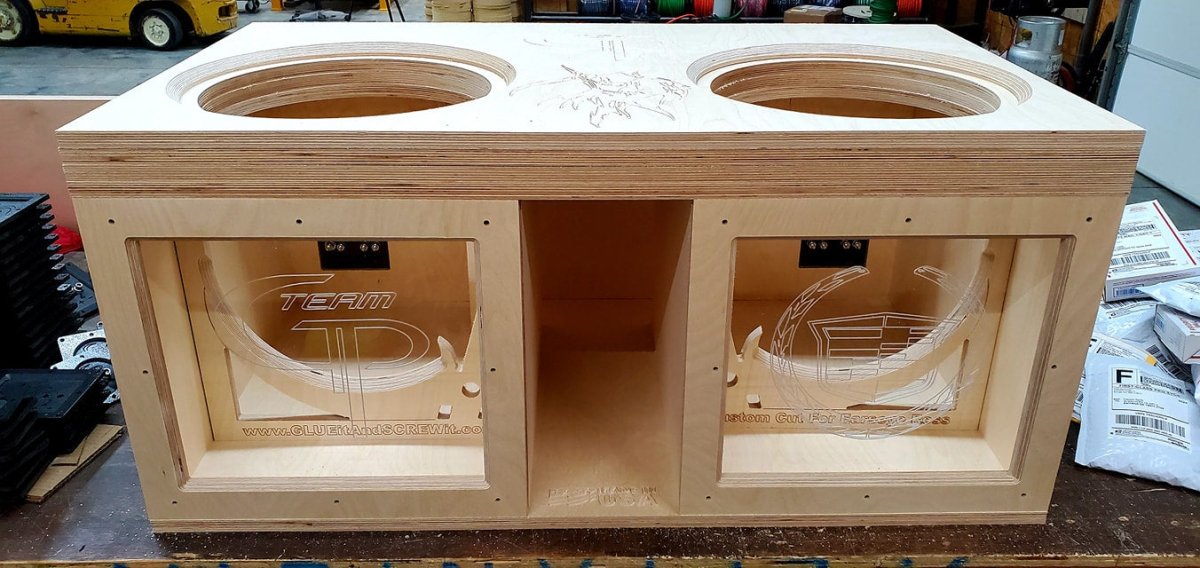

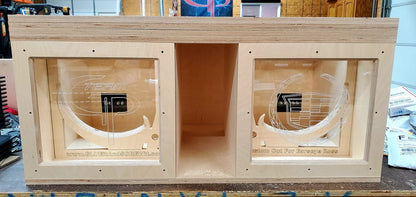

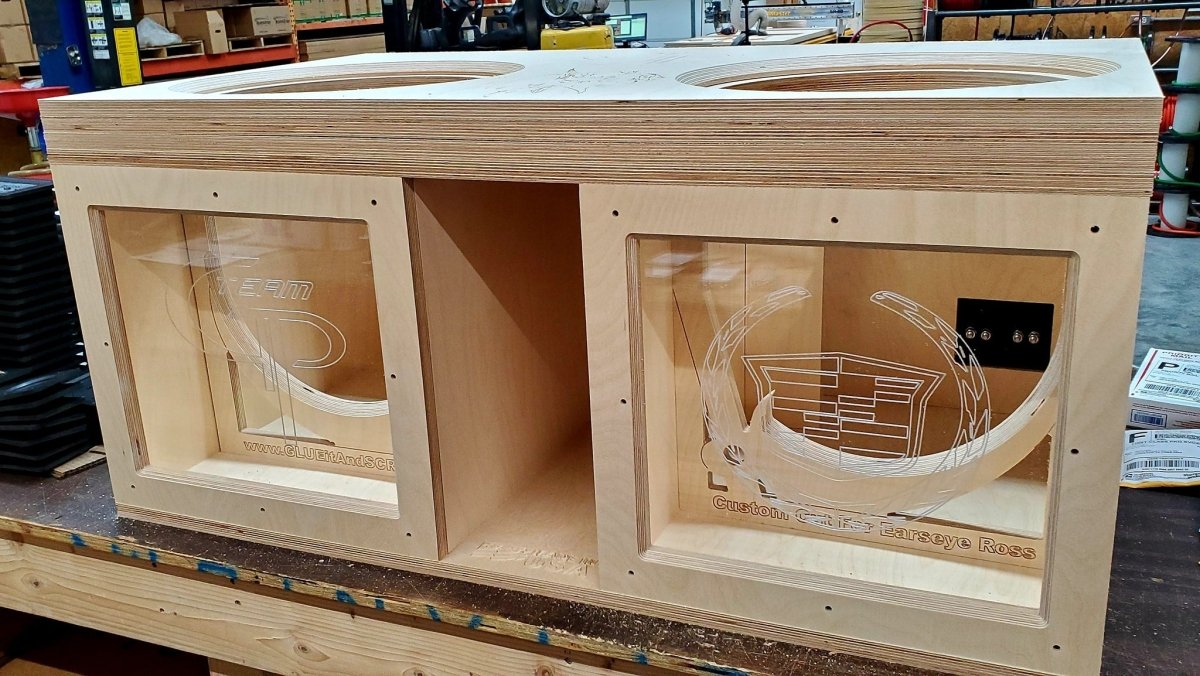

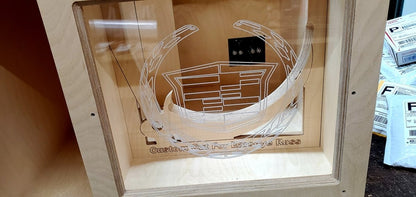

GP ELITE Dual 15" High Output Glue it & Screw It Sub Enclosure

Product Description

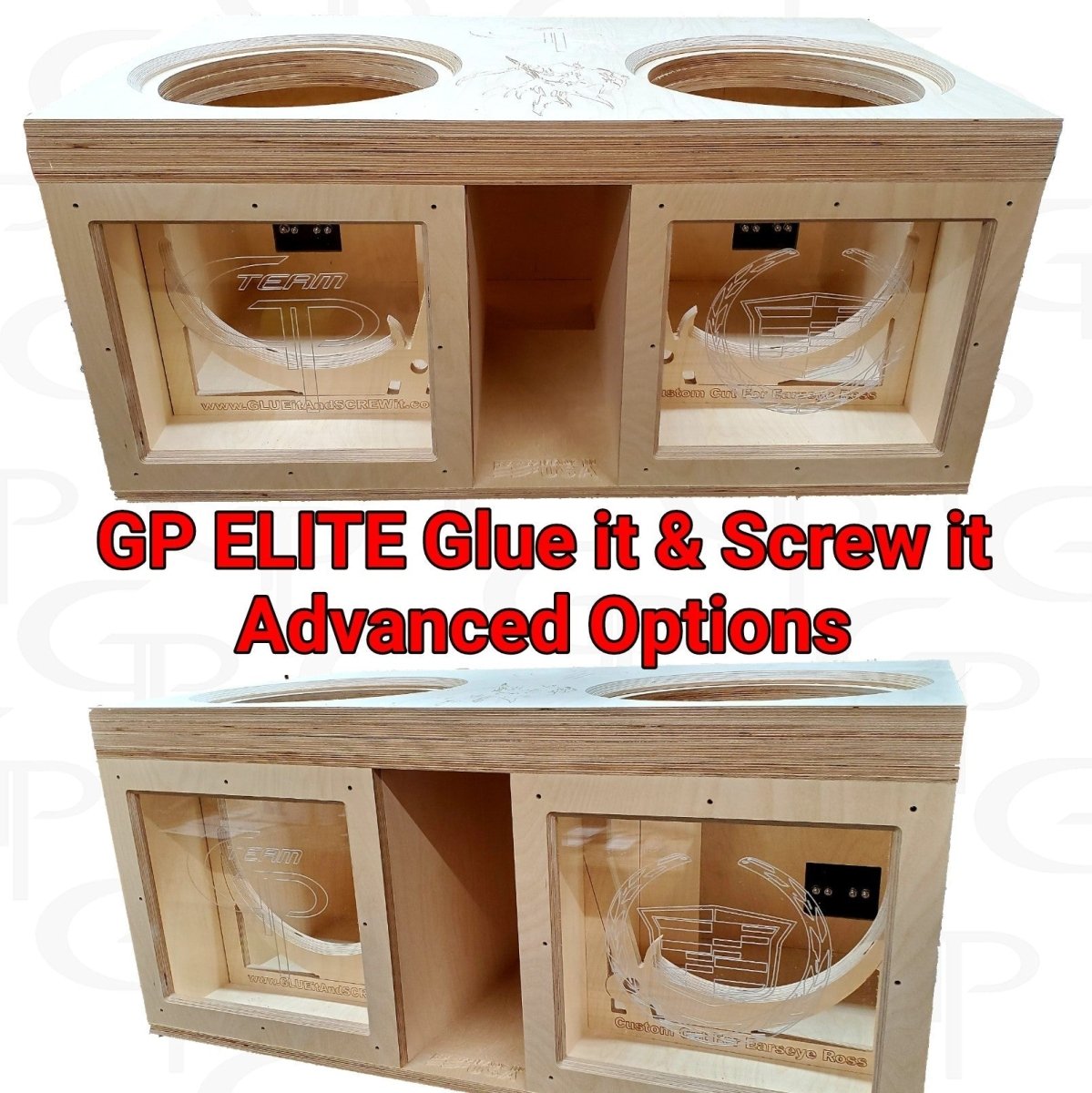

GP Elite Advanced Options

*Assembly Required*

NOTE* Below is estimated enclosure dimensions. Tuning will change the enclosure sizes slightly. Based off your options chosen, if anything is drastically different from the dimensions noted below, we will call you to verify fitment.

______________________________

37hz

Box External Dimensions Width x Height x Depth	46.00" x 16.50" x 26.26"
Material Thickness	0.75"
Net Internal Volume	8.00 ft3
Tuning Frequency	37 Hz
Port Area	120.00 inch2
Port Inlet Width x Height	8.00" x 15.00"
Port Length	16.15"

______________________________

35hz

Box External Dimensions Width x Height x Depth	46.00" x 16.50" x 26.93"
Material Thickness	0.75"
Net Internal Volume	8.00 ft3
Tuning Frequency	35 Hz
Port Area	120.00 inch2
Port Inlet Width x Height	8.00" x 15.00"
Port Length	19.62"

______________________________

33hz

Box External Dimensions Width x Height x Depth	46.00" x 16.50" x 27.75"
Material Thickness	0.75"
Net Internal Volume	8.00 ft3
Tuning Frequency	33 Hz
Port Area	120.00 inch2
Port Inlet Width x Height	8.00" x 15.00"
Port Length	23.74"

______________________________

31hz

Box External Dimensions Width x Height x Depth	46.00" x 16.50" x 28.75"
Material Thickness	0.75"
Net Internal Volume	8.00 ft3
Tuning Frequency	31 Hz
Port Area	120.00 inch2
Port Inlet Width x Height	8.00" x 15.00"
Port Length	28.68"

______________________________

29hz

Box External Dimensions Width x Height x Depth	46.00" x 16.50" x 29.99"
Material Thickness	0.75"
Net Internal Volume	8.00 ft3
Tuning Frequency	29 Hz
Port Area	120.00 inch2
Port Inlet Width x Height	8.00" x 15.00"
Port Length	34.68"
