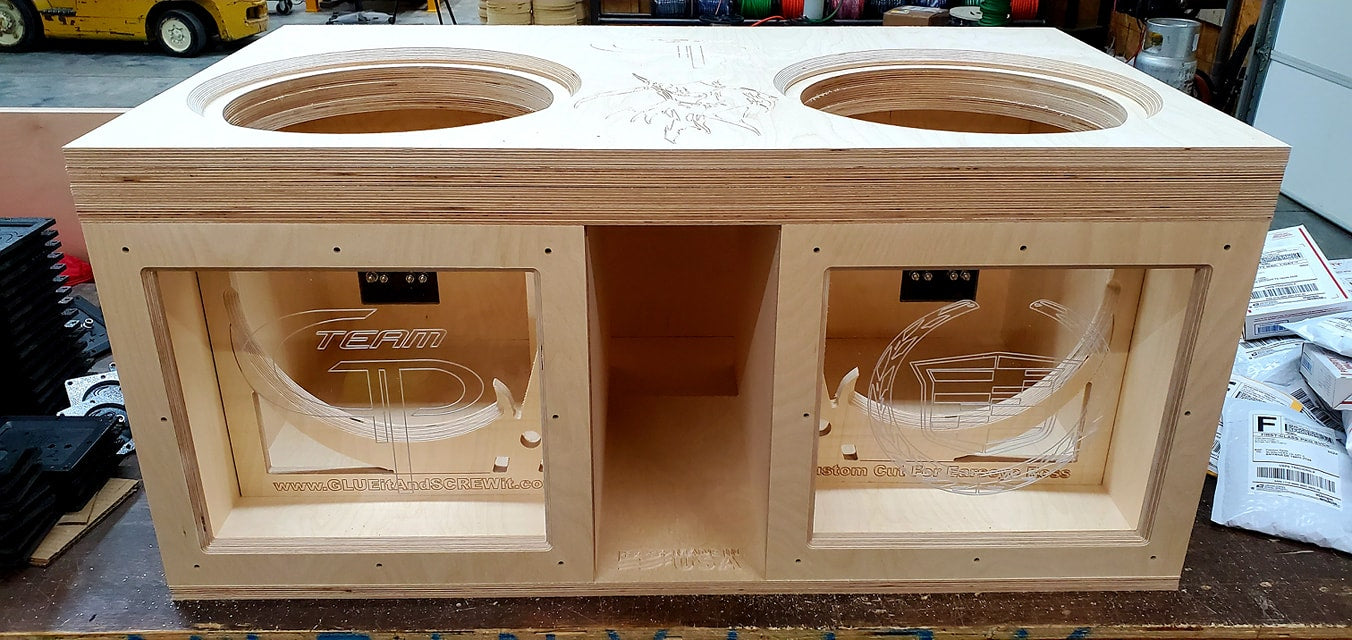

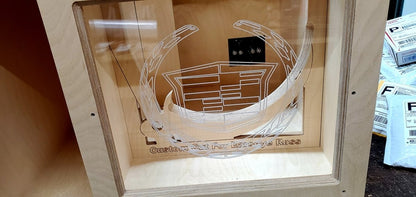

GP ELITE Dual 10" High Output Glue it & Screw It Sub Enclosure

Product Description

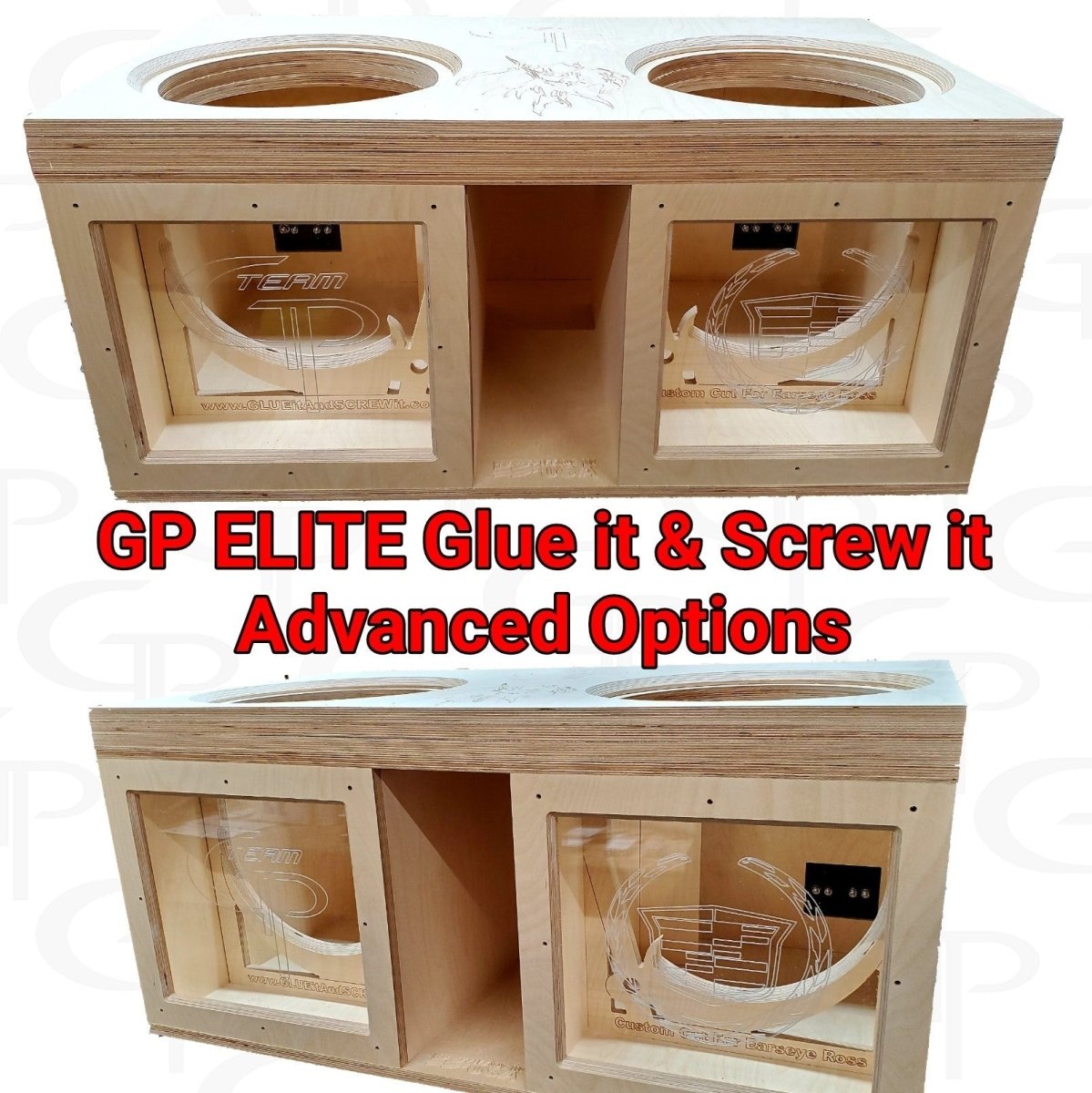

GP Elite Advanced Options

*Assembly Required*

NOTE* Below is estimated enclosure dimensions. Tuning will change the enclosure sizes slightly. Based off your options chosen, if anything is drastically different from the dimensions noted below, we will call you to verify fitment.

________________________________________________________________________________________________

37hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 20.07"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	37 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	21.66"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 20.59"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	35 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	25.13"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 21.21"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	33 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	29.24"

________________________________________________________________________________________________

31hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 21.99"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	31 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	34.19"

________________________________________________________________________________________________

29hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 22.97"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	29 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	40.18"
