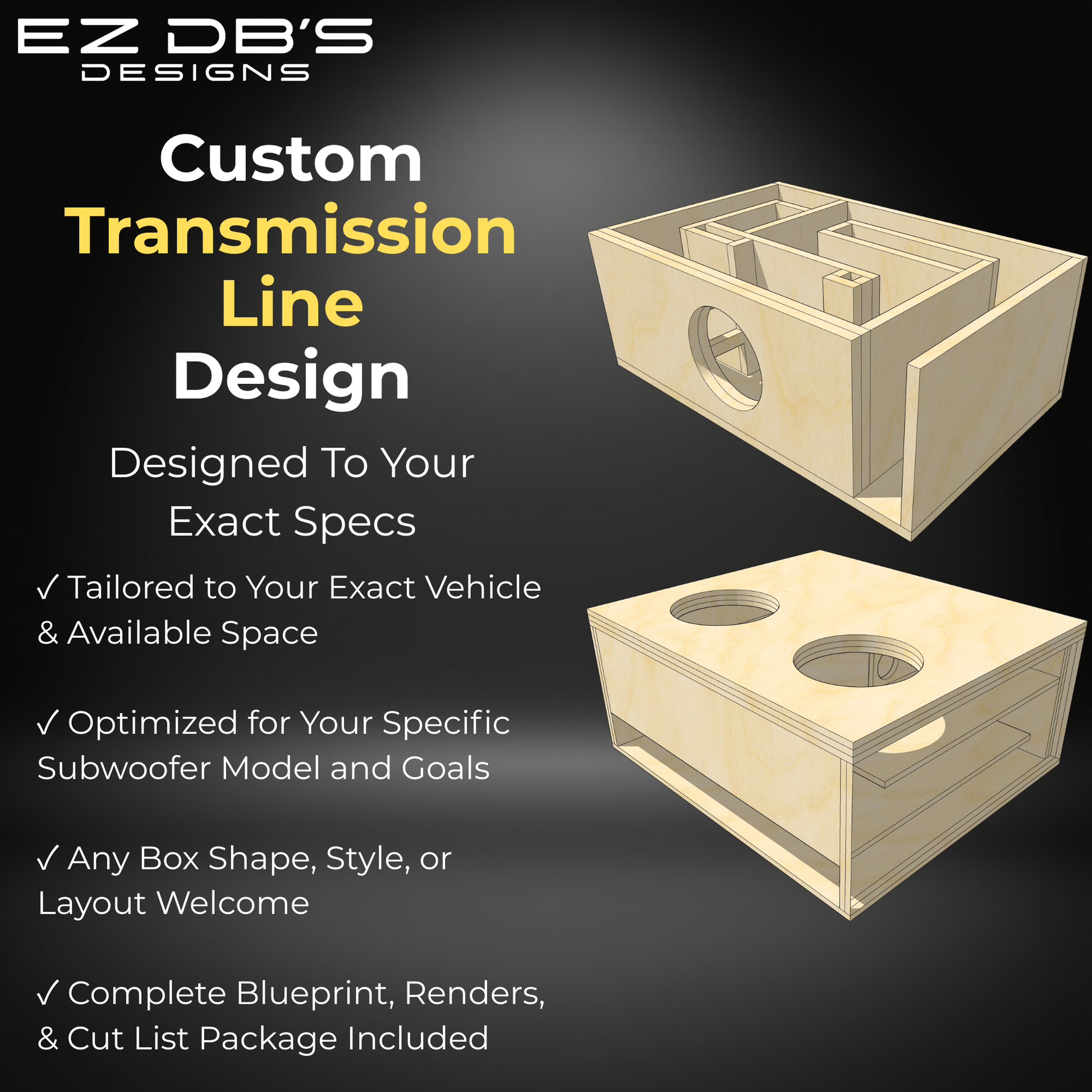

• Custom transmission line T-Line subwoofer box design blueprint package by EZ DB's Designs. Image features a high-contrast yellow "TRANSMISSION LINE" keyword accent and an overlapping 3-box cluster displaying complex internal quarter-wave sound lines mathematically tuned to driver resonance.

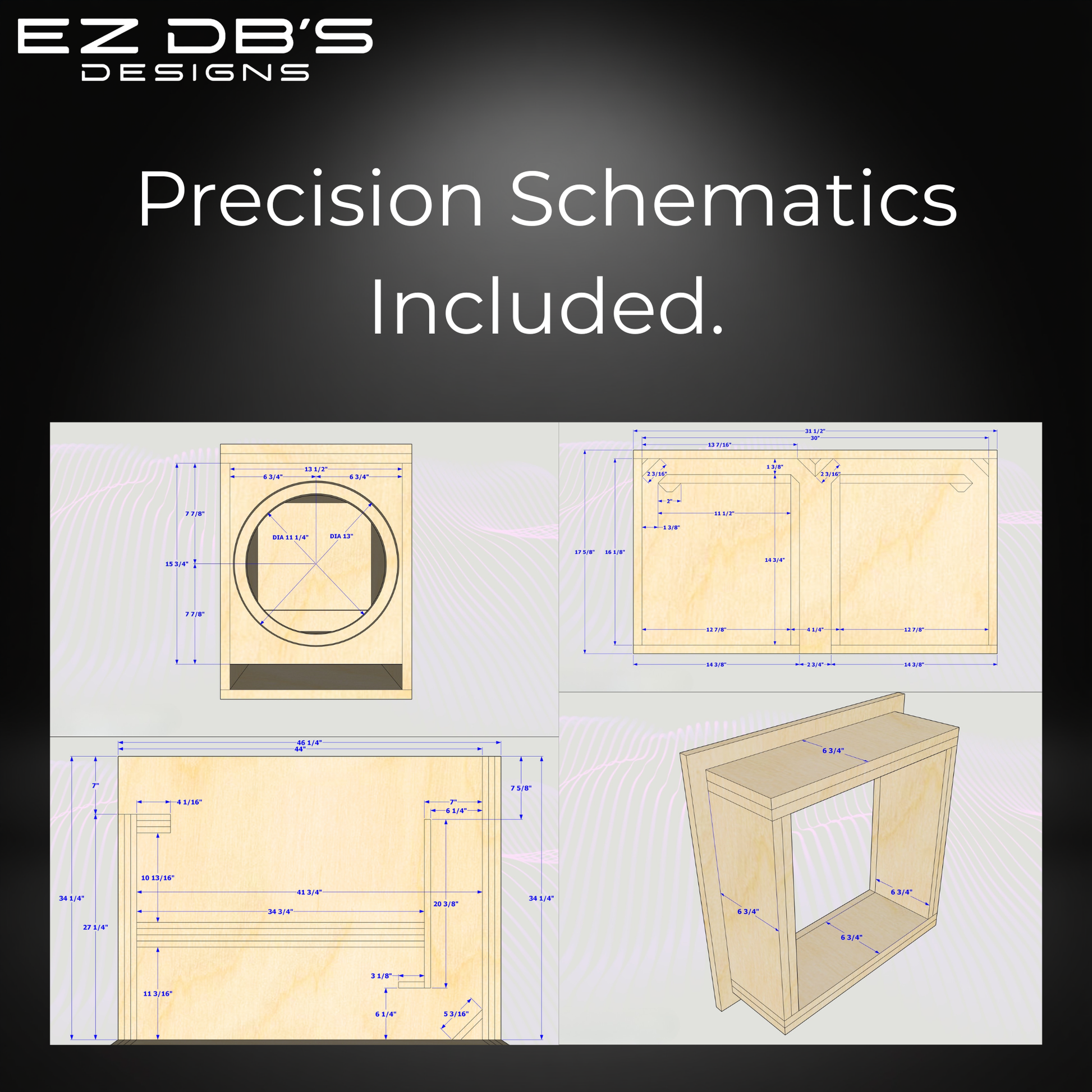

  • A comprehensive technical CAD blueprints preview slide by EZ DB's Designs, displaying sample 2D assembly schematics, precise panel dimensions, material fractions, and structural engineering layouts for various custom subwoofer enclosure types.
  • High-ticket deliverables checklist graphic for EZ DB's Designs custom subwoofer box blueprints, showcasing that every package includes 3D renders, a detailed cut sheet layout, precise independent panel dimensions, and a clear master material list.
  • Store disclosure graphic by EZ DB's Designs stating that this purchase is a digital download package containing high-resolution 2D CAD blueprints, cut lists, and 3D renders only, with no physical subwoofer box shipped to the customer.
1 4

Custom Transmission Line (T-Line) Subwoofer Box Design

Custom Transmission Line (T-Line) Subwoofer Box Design

$164.99 USD
$164.99 USD
Sale Sold out
Shipping calculated at checkout.

Product Description:

⏱️ Current Design Turnaround: 1–3 Days

Please Note: Our queue fluctuates based on active design volume. Your exact turnaround time is locked in based on the timeline displayed here at the precise moment your order is placed.

⚠️ IMPORTANT: DIGITAL PRODUCT ONLY

This is a custom digital engineering and blueprint service. Product images are shown exclusively as examples of our prior work. No physical wooden box or enclosure will be manufactured or shipped to your address.

The Precision Engineering Difference

Transmission lines are completely different from standard enclosures. While normal boxes rely on trapping air pressure or using a small port to compress air, a T-Line functions as an open, precisely measured acoustic pipe. We design a winding internal maze that matches exactly one-quarter of the physical length of your subwoofer's target sound wave. This creates a perfect timing delay: it takes the backwards wave from the rear of your sub and channels it through the maze so it exits the vent perfectly timed to reinforce the front wave, giving you massive, effortless low-end output. Because the pipe is wide open, your subwoofer never fights stiff internal box pressure. We custom-engineer this maze to match your sub’s cone size (Sd), natural frequency (Fs), and motor suspension control (Qts) to deliver unmatched efficiency and a dead-flat response inside your vehicle without risking your equipment.

📦 What You Receive in Your Digital Blueprint Package:

Every custom design is compiled into a high-resolution, easy-to-print PDF package containing:

  • Step-by-Step 2D Blueprints: Detailed structural schematics featuring exact dimensions for every independent angle and panel face.

  • Precision Material Cut-Lists: A comprehensive breakdown of your cuts to be made, which can be inputted into the EZ DB's cut sheet generator

  • Complete Acoustic Specifications: Internal airspace volumes, port areas, tuning frequencies are all included.

  • 3D Render Visualizations: Complete multi-angle 3D models so you can visualize the exact internal structure and finished geometry before making a single cut.

  • Comprehensive Installation Guide: A straightforward, step-by-step guide for ensuring the vehicle and installation around your new precision-engineered enclosure is up to par.

📚 Essential Order Resources

To ensure a perfect fit, please review our master guides before and after submitting your design parameters:

View full details

✅ 100% Satisfaction Guarantee

⭐⭐⭐⭐⭐ Over 250 Five-Star Reviews • 8000+ Custom Box Designs Delivered

Secure Checkout • Design Process Starts After Payment
