8" Single High Output XL Glue it & Screw It Sub Enclosure

Product Description

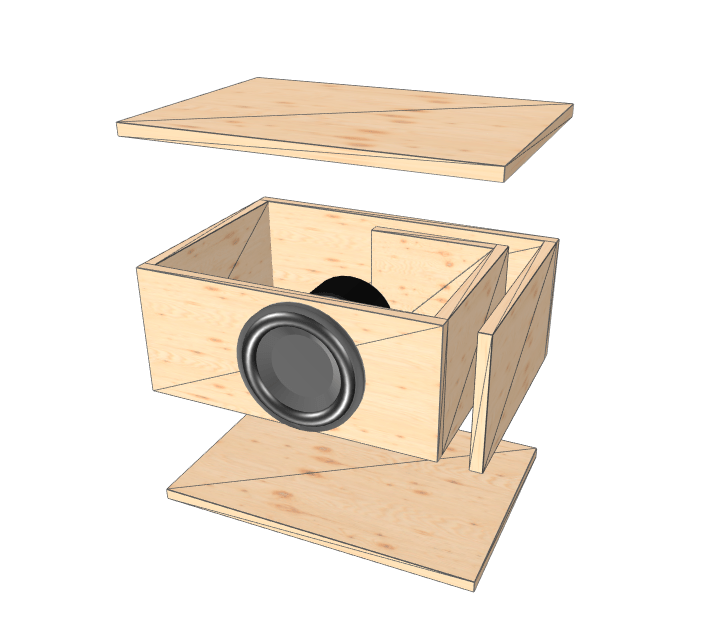

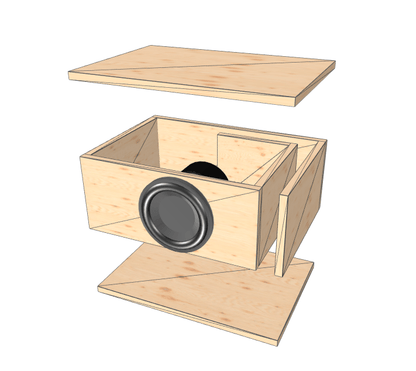

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

39hz

Box External Dimensions Width x Height x Depth	22.00" x 10.00" x 15.04"
Material Thickness	0.75"
Net Internal Volume	1.00 ft3
Tuning Frequency	39 Hz
Port Area	16.00 inch2
Port Inlet Width x Height	1.88" x 8.50"
Port Length	23.46"

________________________________________________________________________________________________

37hz

Box External Dimensions Width x Height x Depth	22.00" x 10.00" x 15.48"
Material Thickness	0.75"
Net Internal Volume	1.00 ft3
Tuning Frequency	37 Hz
Port Area	16.00 inch2
Port Inlet Width x Height	1.88" x 8.50"
Port Length	26.61"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	22.00" x 10.00" x 16.01"
Material Thickness	0.75"
Net Internal Volume	1.00 ft3
Tuning Frequency	35 Hz
Port Area	16.00 inch2
Port Inlet Width x Height	1.88" x 8.50"
Port Length	30.31"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	27.25" x 10.00" x 13.59"
Material Thickness	0.75"
Net Internal Volume	1.00 ft3
Tuning Frequency	33 Hz
Port Area	16.00 inch2
Port Inlet Width x Height	1.88" x 8.50"
Port Length	34.70"

________________________________________________________________________________________________
