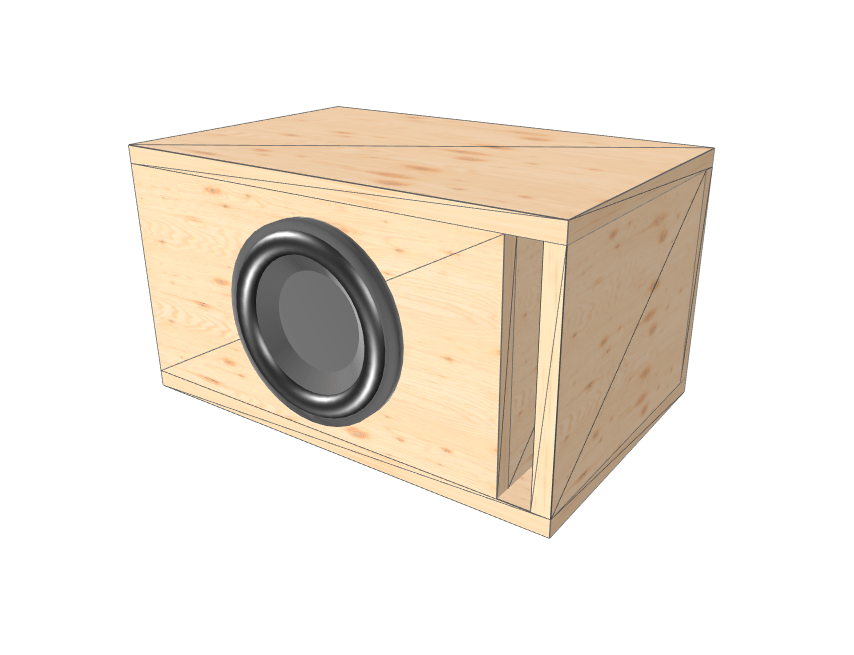

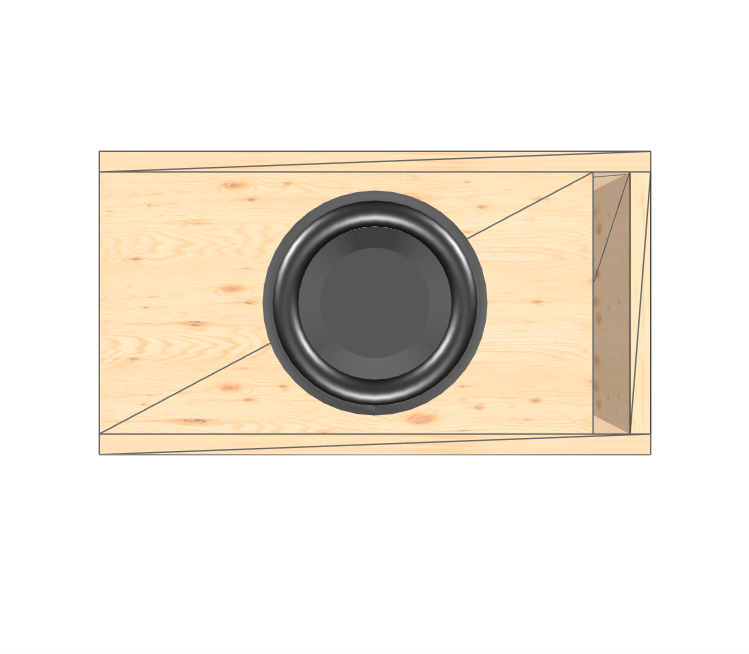

8" Single High Output Glue it & Screw It Sub Enclosure

Product Description

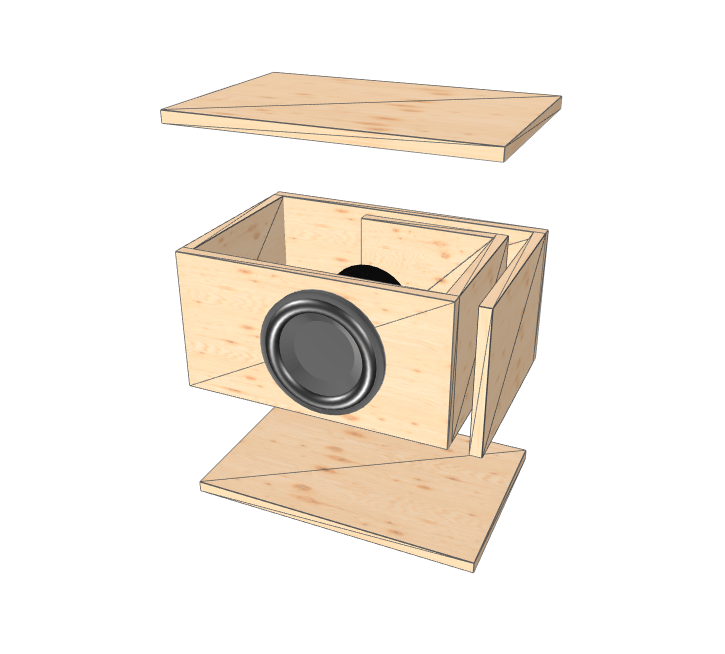

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

39hz

Box External Dimensions Width x Height x Depth	20.00" x 11.00" x 12.94"
Material Thickness	0.75"
Net Internal Volume	0.85 ft3
Tuning Frequency	39 Hz
Port Area	12.75 inch2
Port Inlet Width x Height	1.34" x 9.50"
Port Length	22.17"

________________________________________________________________________________________________

37hz

Box External Dimensions Width x Height x Depth	20.00" x 11.00" x 13.30"
Material Thickness	0.75"
Net Internal Volume	0.85 ft3
Tuning Frequency	37 Hz
Port Area	12.75 inch2
Port Inlet Width x Height	1.34" x 9.50"
Port Length	25.11"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	20.00" x 11.00" x 13.74"
Material Thickness	0.75"
Net Internal Volume	0.85 ft3
Tuning Frequency	35 Hz
Port Area	12.75 inch2
Port Inlet Width x Height	1.34" x 9.50"
Port Length	28.57"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	25.75" x 10.00" x 12.31"
Material Thickness	0.75"
Net Internal Volume	0.85 ft3
Tuning Frequency	33 Hz
Port Area	12.75 inch2
Port Inlet Width x Height	1.50" x 8.50"
Port Length	32.69"

________________________________________________________________________________________________
