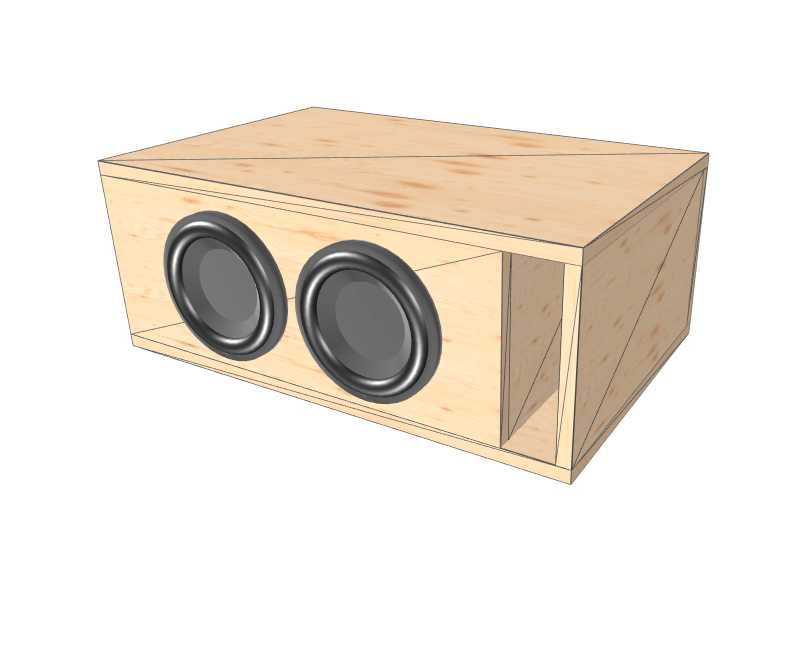

8" Dual High Output Glue it & Screw It Sub Enclosure.

Product Description

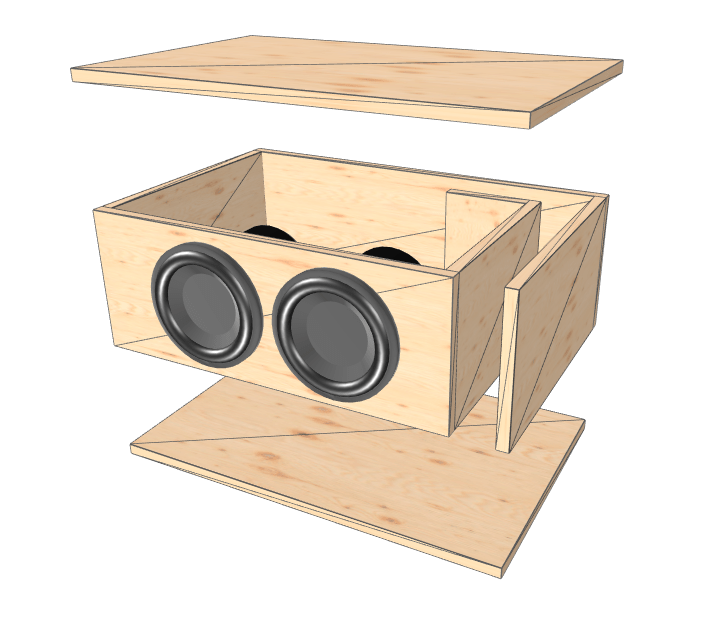

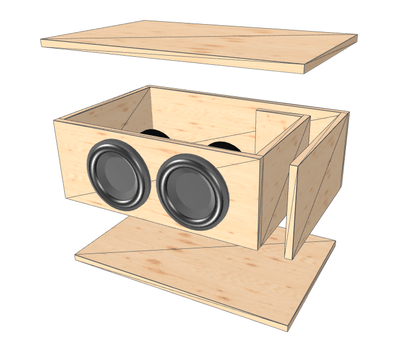

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

37hz

Box External Dimensions Width x Height x Depth	28.00" x 11.00" x 17.68"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	37 Hz
Port Area	26.25 inch2
Port Inlet Width x Height	2.76" x 9.50"
Port Length	23.23"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	28.00" x 11.00" x 18.16"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	35 Hz
Port Area	26.25 inch2
Port Inlet Width x Height	2.76" x 9.50"
Port Length	26.70"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	28.00" x 11.00" x 18.76"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	33 Hz
Port Area	26.25 inch2
Port Inlet Width x Height	2.76" x 9.50"
Port Length	30.81"

________________________________________________________________________________________________

31hz

Box External Dimensions Width x Height x Depth	28.00" x 11.00" x 19.51"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	31 Hz
Port Area	26.25 inch2
Port Inlet Width x Height	2.76" x 9.50"
Port Length	35.75"

________________________________________________________________________________________________

29hz

Box External Dimensions Width x Height x Depth	31.00" x 11.00" x 18.54"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	29 Hz
Port Area	26.25 inch2
Port Inlet Width x Height	2.76" x 9.50"
Port Length	41.74"
