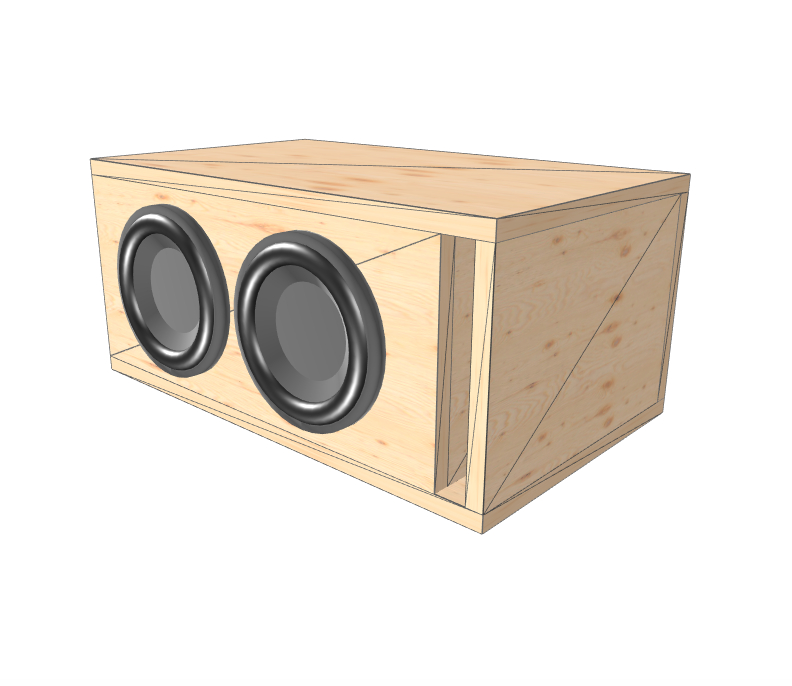

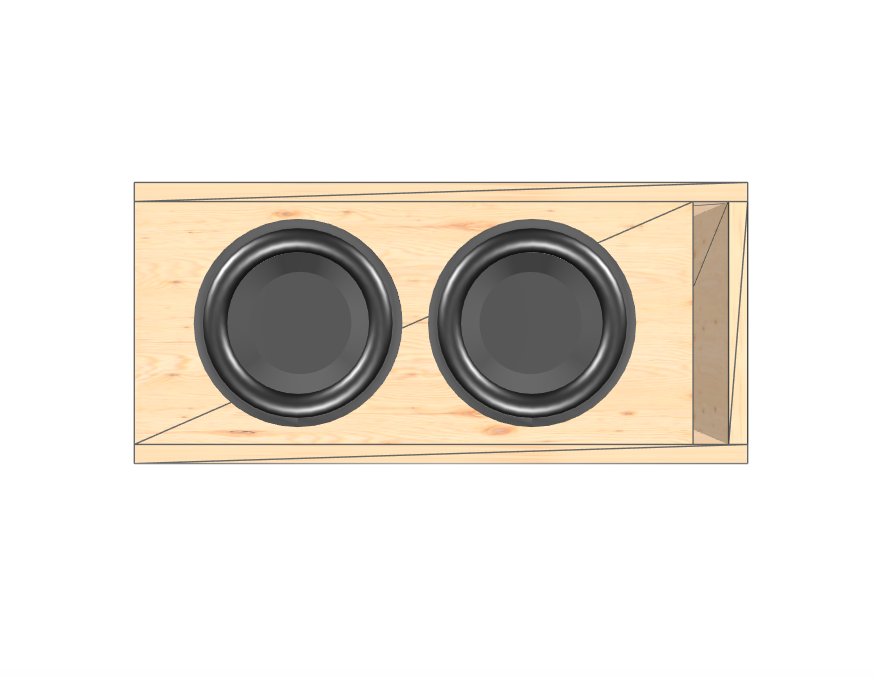

8" Dual Compact Glue it & Screw It Sub Enclosure

Product Description

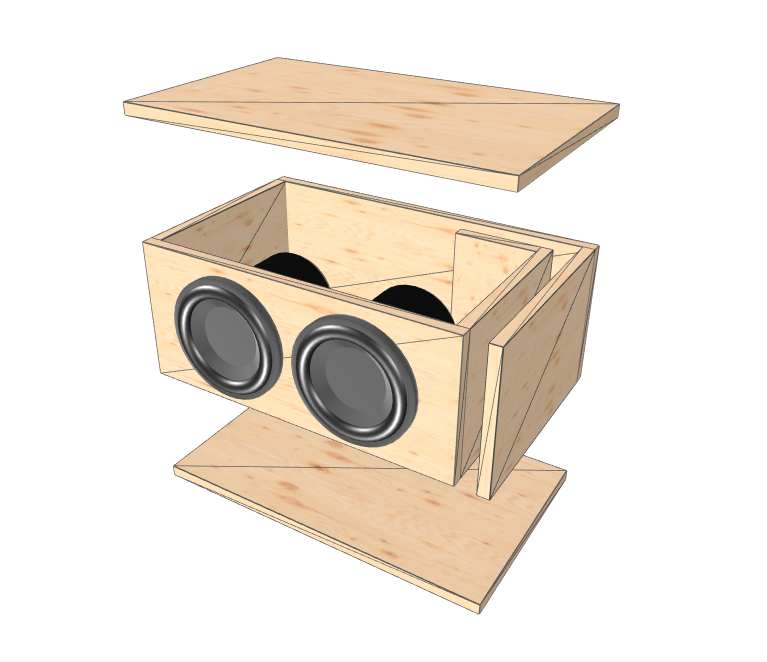

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

37hz

Box External Dimensions Width x Height x Depth	24.00" x 11.00" x 14.11"
Material Thickness	0.75"
Net Internal Volume	1.20 ft3
Tuning Frequency	37 Hz
Port Area	13.20 inch2
Port Inlet Width x Height	1.39" x 9.50"
Port Length	17.19"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	24.00" x 11.00" x 14.34"
Material Thickness	0.75"
Net Internal Volume	1.20 ft3
Tuning Frequency	35 Hz
Port Area	13.20 inch2
Port Inlet Width x Height	1.39" x 9.50"
Port Length	19.74"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	24.00" x 11.00" x 14.63"
Material Thickness	0.75"
Net Internal Volume	1.20 ft3
Tuning Frequency	33 Hz
Port Area	13.20 inch2
Port Inlet Width x Height	1.39" x 9.50"
Port Length	22.75"

________________________________________________________________________________________________

31hz

Box External Dimensions Width x Height x Depth	24.00" x 11.00" x 15.01"
Material Thickness	0.75"
Net Internal Volume	1.20 ft3
Tuning Frequency	31 Hz
Port Area	13.20 inch2
Port Inlet Width x Height	1.39" x 9.50"
Port Length	26.37"

________________________________________________________________________________________________

29hz

Box External Dimensions Width x Height x Depth	24.00" x 11.00" x 15.49"
Material Thickness	0.75"
Net Internal Volume	1.20 ft3
Tuning Frequency	29 Hz
Port Area	13.20 inch2
Port Inlet Width x Height	1.39" x 9.50"
Port Length	30.77"
