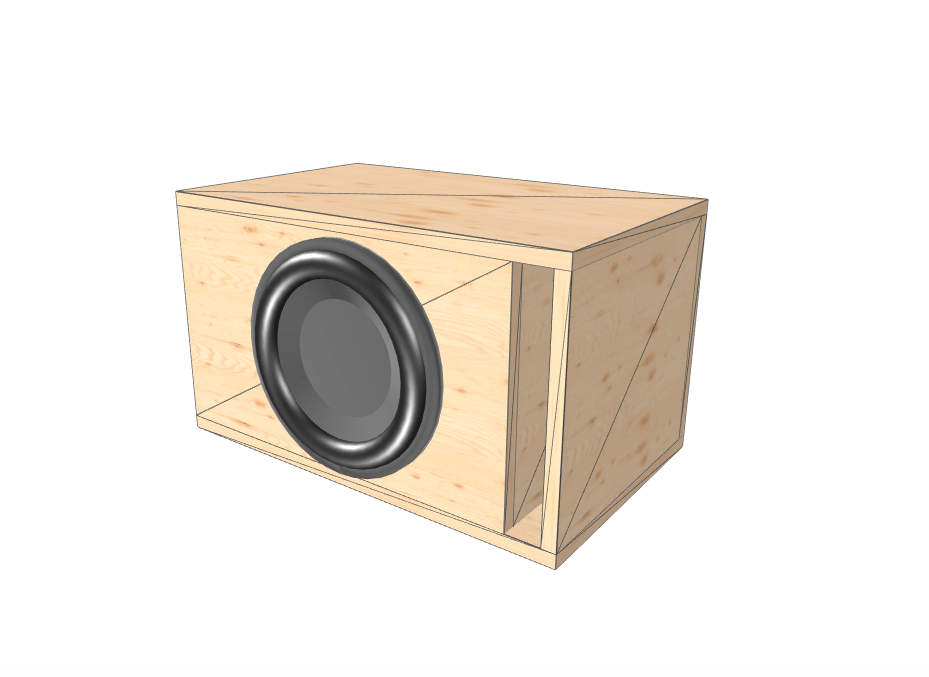

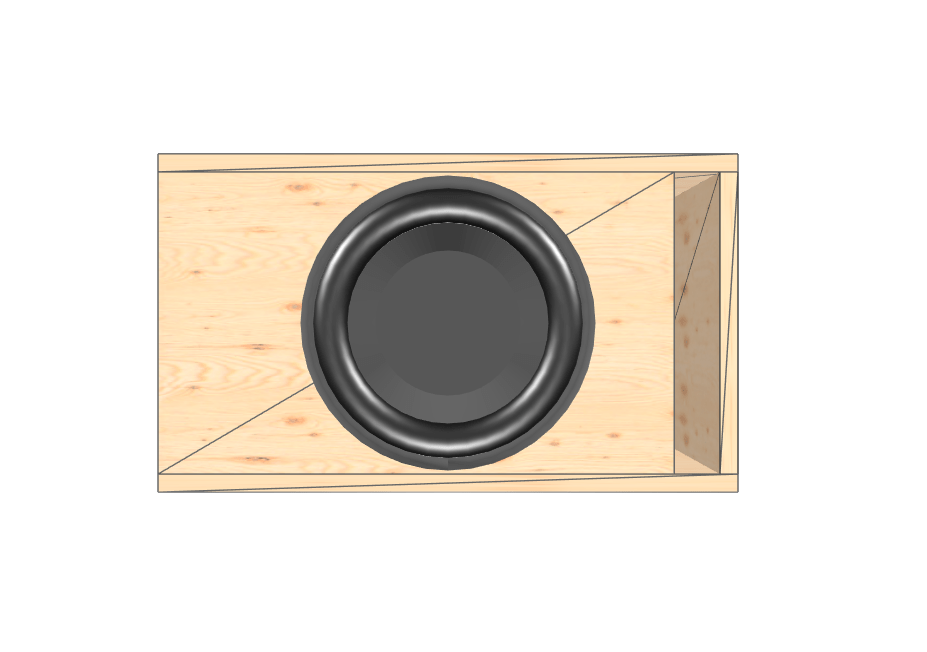

12" single Compact High Performance Glue it & Screw It Sub Enclosure

Product Description

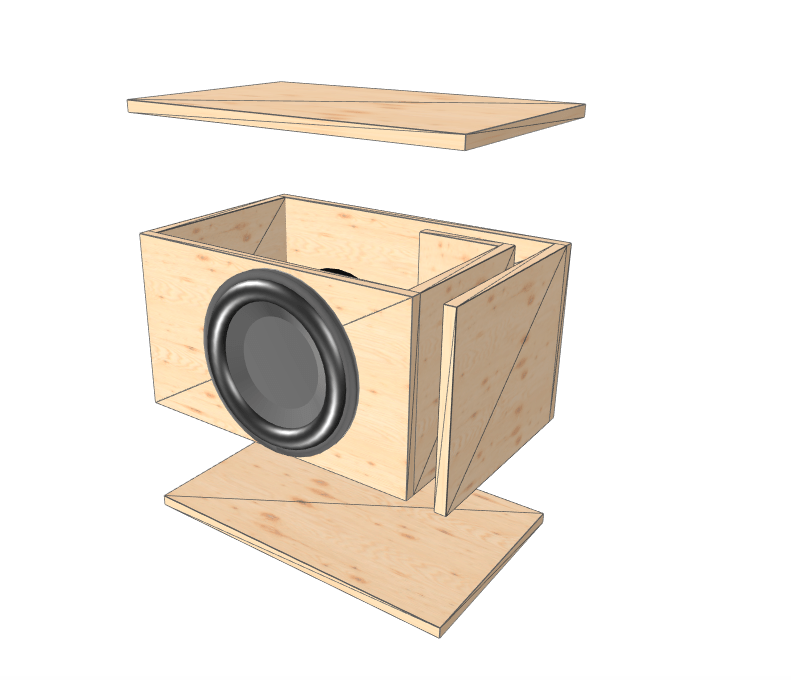

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

Every GP Glue It And Screw It enclosure is 100% designed to order per subs you are using and comes standard with an internal brace

Any dimensions can be altered, let us know your max dimensions in the order notes, or leave us a note on the order to have us call you to go over anything, be sure to note your vehicle.

*Includes enclosure specific internal brace*

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

37hz

Box External Dimensions Width x Height x Depth	24.00" x 14.00" x 14.77"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	37 Hz
Port Area	23.62 inch2
Port Inlet Width x Height	1.89" x 12.50"
Port Length	20.60"

______________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	24.00" x 14.00" x 15.15"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	35 Hz
Port Area	23.62 inch2
Port Inlet Width x Height	1.89" x 12.50"
Port Length	23.71"

______________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	24.00" x 14.00" x 15.62"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	33 Hz
Port Area	23.62 inch2
Port Inlet Width x Height	1.89" x 12.50"
Port Length	27.42"

______________________________________________________________

31hz

Box External Dimensions Width x Height x Depth	24.00" x 14.00" x 16.22"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	31 Hz
Port Area	23.62 inch2
Port Inlet Width x Height	1.89" x 12.50"
Port Length	31.86"

______________________________________________________________

29hz *Due to the port length, the 29hz model is 5.5" wider*

Box External Dimensions Width x Height x Depth	29.50" x 14.00" x 13.94"
Material Thickness	0.75"
Net Internal Volume	1.75 ft3
Tuning Frequency	29 Hz
Port Area	23.62 inch2
Port Inlet Width x Height	1.89" x 12.50"
Port Length	37.25"
