10" single High Output Glue it & Screw It Sub Enclosure

Product Description

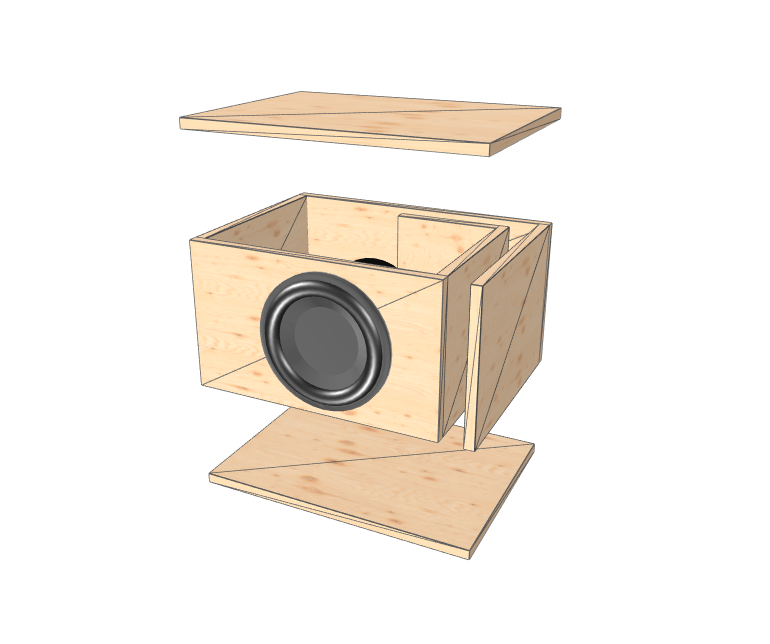

GP's Glue it & Screw it flat packed subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

________________________________

37hz

Box External Dimensions Width x Height x Depth	22.00" x 13.00" x 15.88"
Material Thickness	0.75"
Net Internal Volume	1.40 ft3
Tuning Frequency	37 Hz
Port Area	21.00 inch2
Port Inlet Width x Height	1.83" x 11.50"
Port Length	23.95"

________________________________

35hz

Box External Dimensions Width x Height x Depth	22.00" x 13.00" x 16.35"
Material Thickness	0.75"
Net Internal Volume	1.40 ft3
Tuning Frequency	35 Hz
Port Area	21.00 inch2
Port Inlet Width x Height	1.83" x 11.50"
Port Length	27.42"

________________________________

33hz

Box External Dimensions Width x Height x Depth	22.00" x 13.00" x 16.94"
Material Thickness	0.75"
Net Internal Volume	1.40 ft3
Tuning Frequency	33 Hz
Port Area	21.00 inch2
Port Inlet Width x Height	1.83" x 11.50"
Port Length	31.54"

________________________________

31hz

Box External Dimensions Width x Height x Depth	30.00" x 13.00" x 13.15"
Material Thickness	0.75"
Net Internal Volume	1.40 ft3
Tuning Frequency	31 Hz
Port Area	21.00 inch2
Port Inlet Width x Height	1.83" x 11.50"
Port Length	36.49"

________________________________
