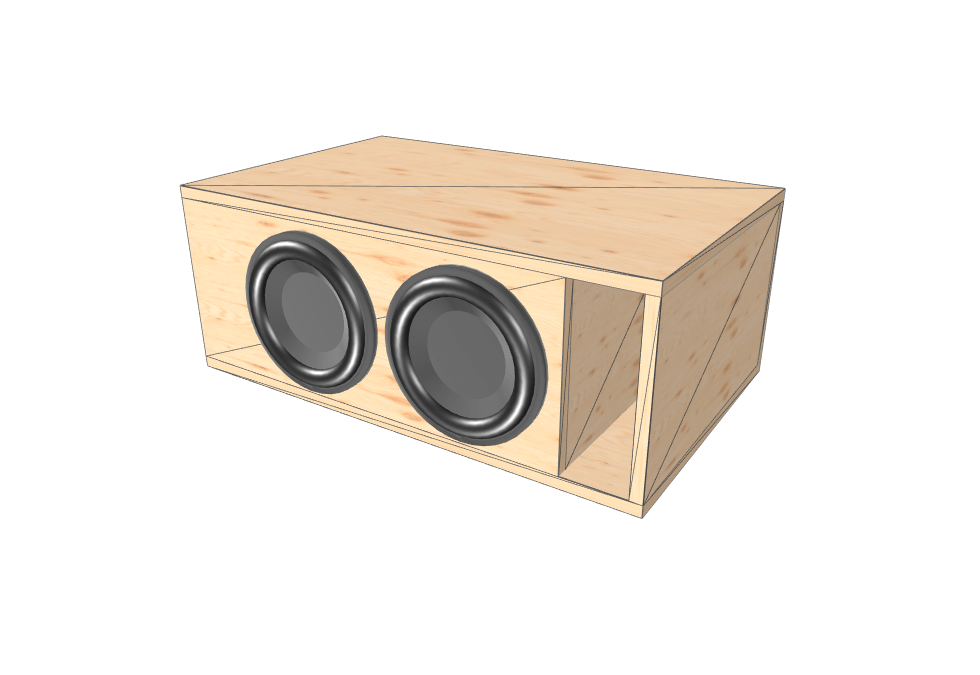

10" Dual High Output Glue it & Screw It Sub Enclosure

Product Description

GP's Glue it & Screw it flat packed HIGH OUTPUT subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Includes enclosure specific internal brace*

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

Dual 10" High Output flat packed enclosure net: 2.7 cubes

________________________________________________________________________________________________

37hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 20.07"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	37 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	21.66"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 20.59"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	35 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	25.13"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 21.21"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	33 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	29.24"

________________________________________________________________________________________________

31hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 21.99"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	31 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	34.19"

________________________________________________________________________________________________

29hz

Box External Dimensions Width x Height x Depth	33.00" x 12.50" x 22.97"
Material Thickness	0.75"
Net Internal Volume	2.75 ft3
Tuning Frequency	29 Hz
Port Area	41.25 inch2
Port Inlet Width x Height	3.75" x 11.00"
Port Length	40.18"
