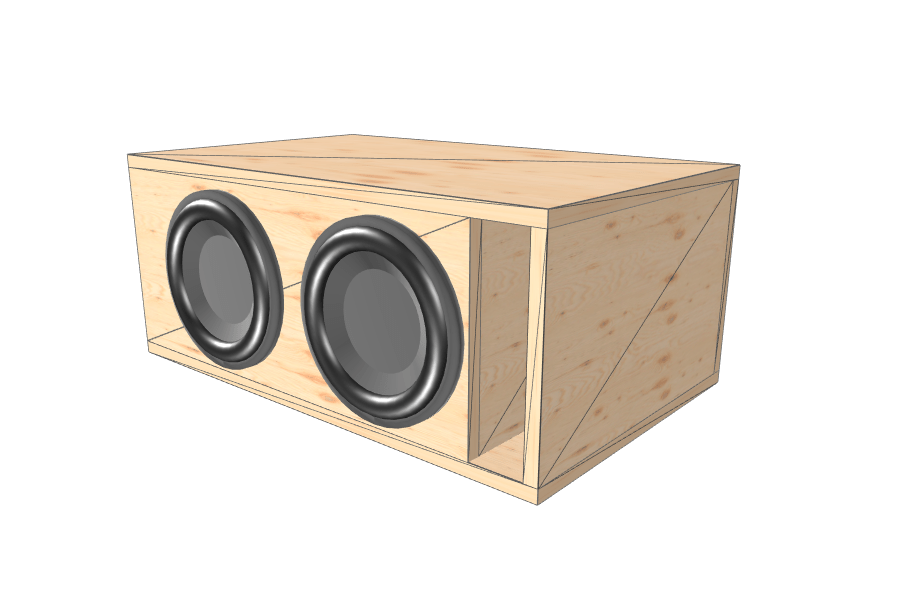

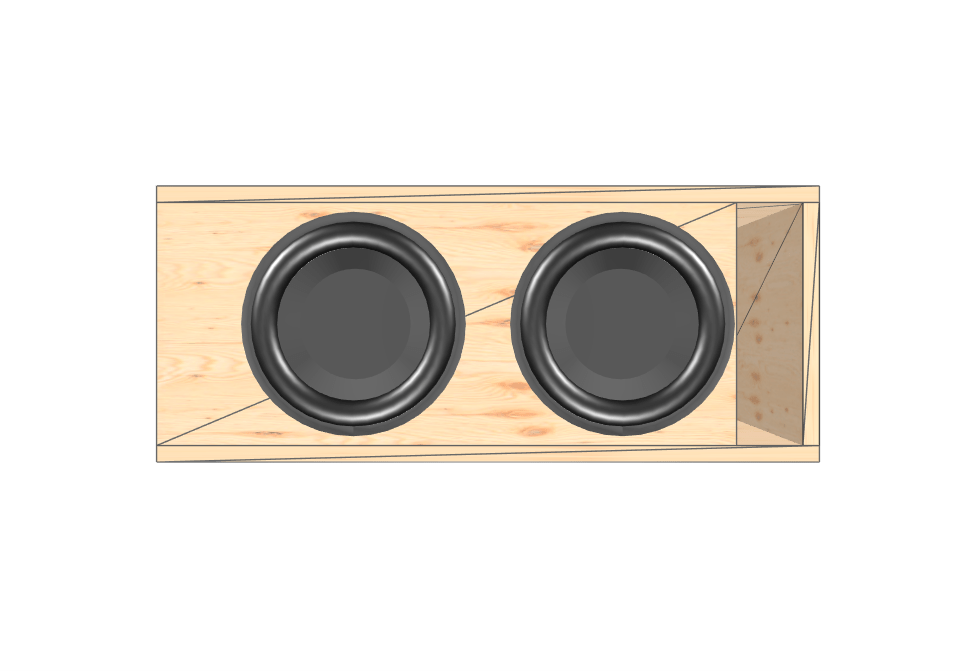

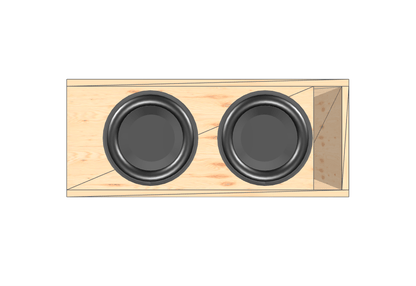

10" Dual Compact High Performance Glue it & Screw It Sub Enclosure

Product Description

GP's Glue it & Screw it flat packed High Output SQL subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

Dual 10" flat packed enclosure net: 2.45 cubes

________________________________________________________________________________________________

37hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 18.08"
Material Thickness	0.75"
Net Internal Volume	2.45 ft3
Tuning Frequency	37 Hz
Port Area	33.00 inch2
Port Inlet Width x Height	3.00" x 11.00"
Port Length	19.48"

________________________________________________________________________________________________

35hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 18.50"
Material Thickness	0.75"
Net Internal Volume	2.45 ft3
Tuning Frequency	35 Hz
Port Area	33.00 inch2
Port Inlet Width x Height	3.00" x 11.00"
Port Length	22.59"

________________________________________________________________________________________________

33hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 19.00"
Material Thickness	0.75"
Net Internal Volume	2.45 ft3
Tuning Frequency	33 Hz
Port Area	33.00 inch2
Port Inlet Width x Height	3.00" x 11.00"
Port Length	26.29"

________________________________________________________________________________________________

31hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 19.64"
Material Thickness	0.75"
Net Internal Volume	2.45 ft3
Tuning Frequency	31 Hz
Port Area	33.00 inch2
Port Inlet Width x Height	3.00" x 11.00"
Port Length	30.72"

________________________________________________________________________________________________

29hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 20.44"
Material Thickness	0.75"
Net Internal Volume	2.45 ft3
Tuning Frequency	29 Hz
Port Area	33.00 inch2
Port Inlet Width x Height	3.00" x 11.00"
Port Length	36.11"
