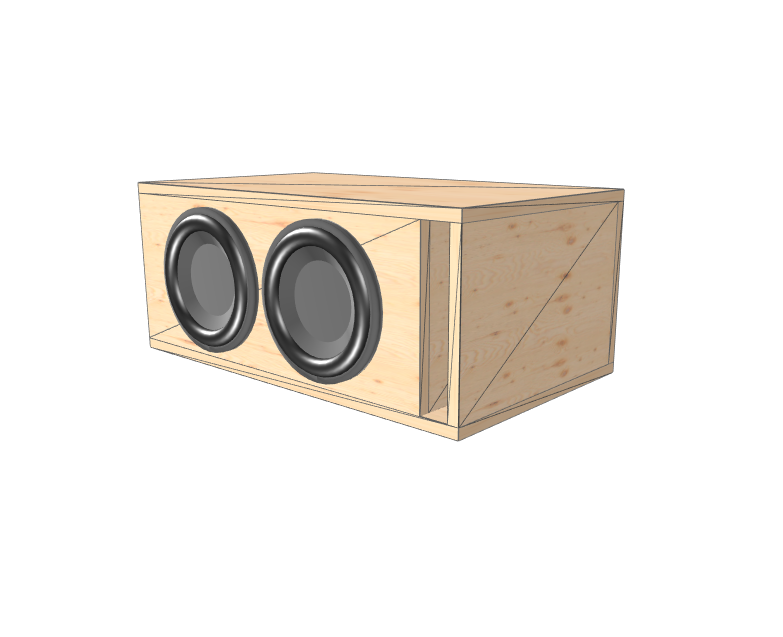

10" Dual Compact Glue it & Screw It Sub Enclosure

Product Description

GP's Glue it & Screw it flat packed High Output SQL subwoofer enclosures come precision CNC cut, so all you have to do is Glue It & Screw It!

*Assembly Required*

NOTE* Tuning will change the enclosure sizes slightly.

Dual 10" flat packed enclosure net: 2.00 cubes

____________________________________________

37hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 16.01"
Material Thickness	0.75"
Net Internal Volume	2.00 ft3
Tuning Frequency	37 Hz
Port Area	22.00 inch2
Port Inlet Width x Height	2.00" x 11.00"
Port Length	15.93"

____________________________________________

35hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 16.25"
Material Thickness	0.75"
Net Internal Volume	2.00 ft3
Tuning Frequency	35 Hz
Port Area	22.00 inch2
Port Inlet Width x Height	2.00" x 11.00"
Port Length	18.48"

____________________________________________

33hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 16.54"
Material Thickness	0.75"
Net Internal Volume	2.00 ft3
Tuning Frequency	33 Hz
Port Area	22.00 inch2
Port Inlet Width x Height	2.00" x 11.00"
Port Length	21.50"

____________________________________________

31hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 16.91"
Material Thickness	0.75"
Net Internal Volume	2.00 ft3
Tuning Frequency	31 Hz
Port Area	22.00 inch2
Port Inlet Width x Height	2.00" x 11.00"
Port Length	25.12"

____________________________________________

29hz

Box External Dimensions Width x Height x Depth	30.00" x 12.50" x 17.38"
Material Thickness	0.75"
Net Internal Volume	2.00 ft3
Tuning Frequency	29 Hz
Port Area	22.00 inch2
Port Inlet Width x Height	2.00" x 11.00"
Port Length	29.52"
