GP ELITE Single 10" High Output XL Glue it & Screw It Sub Enclosure

Product Description

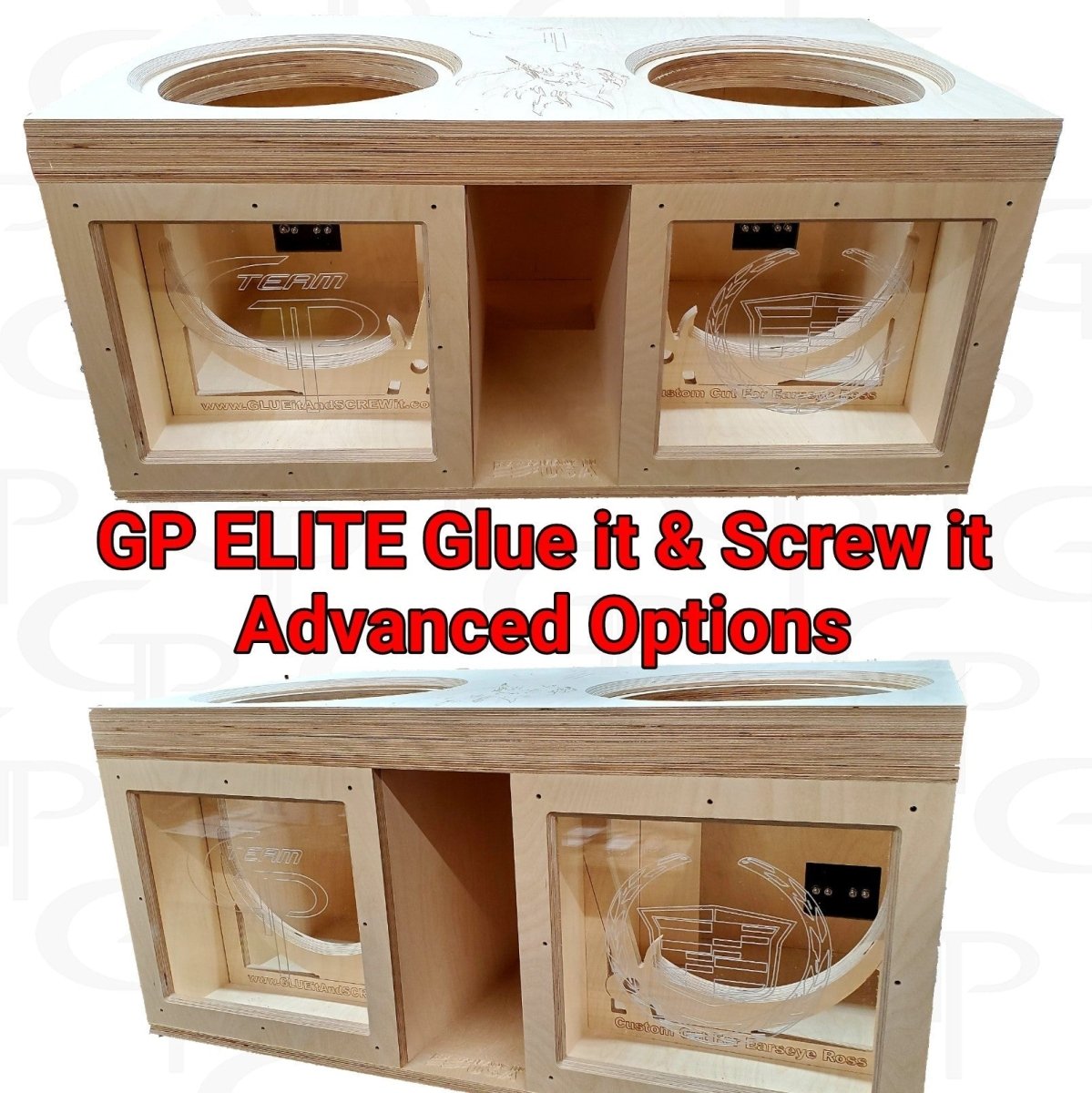

GP Elite Advanced Options

NOTE* Below is estimated enclosure dimensions. Tuning will change the enclosure sizes slightly. Based off your options chosen, if anything is drastically different from the dimensions noted below, we will call you to verify fitment.

______________________

37hz

Box External Dimensions Width x Height x Depth	24.00" x 13.00" x 15.77"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	37 Hz
Port Area	24.00 inch2
Port Inlet Width x Height	2.09" x 11.50"
Port Length	25.48"

______________________

35hz

Box External Dimensions Width x Height x Depth	24.00" x 13.00" x 16.28"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	35 Hz
Port Area	24.00 inch2
Port Inlet Width x Height	2.09" x 11.50"
Port Length	29.18"

______________________

33hz

Box External Dimensions Width x Height x Depth	24.00" x 13.00" x 16.92"
Material Thickness	0.75"
Net Internal Volume	1.50 ft3
Tuning Frequency	33 Hz
Port Area	24.00 inch2
Port Inlet Width x Height	2.09" x 11.50"
Port Length	33.57"
