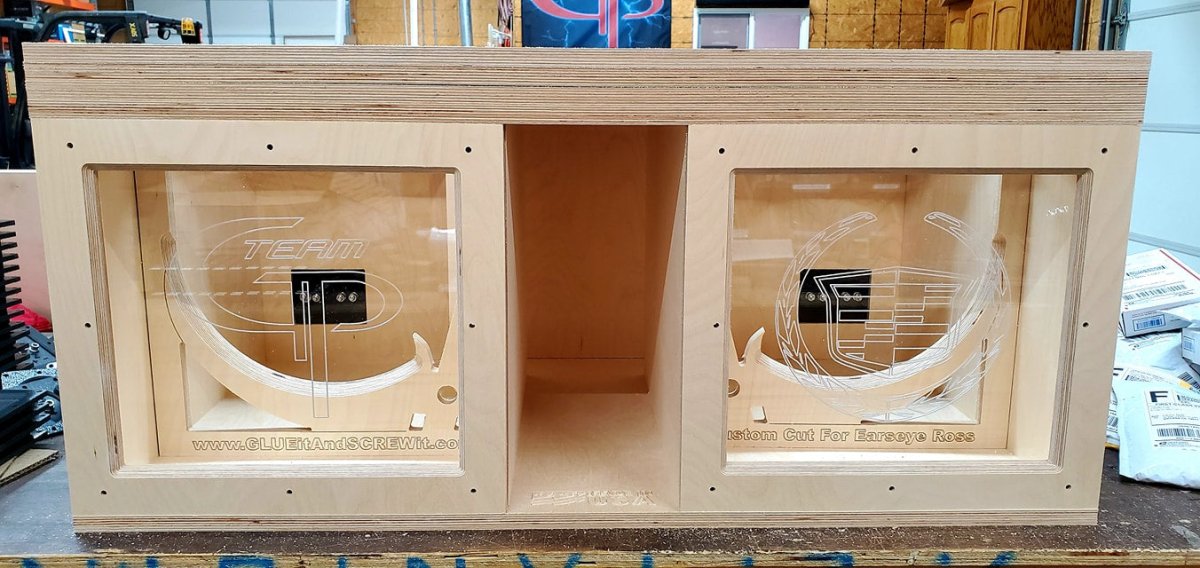

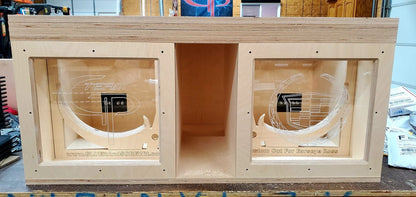

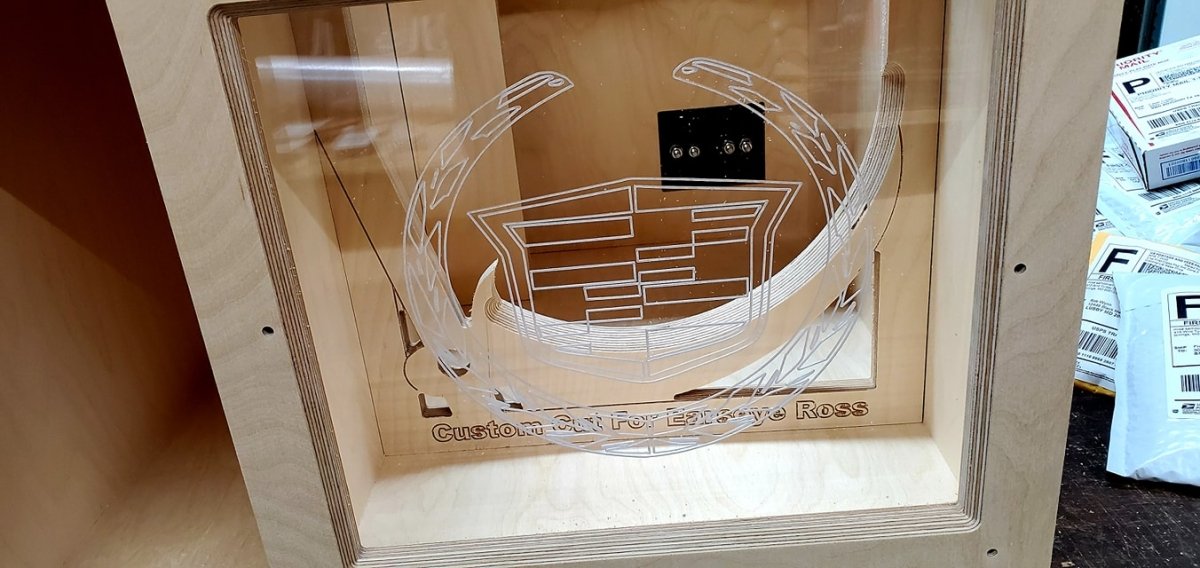

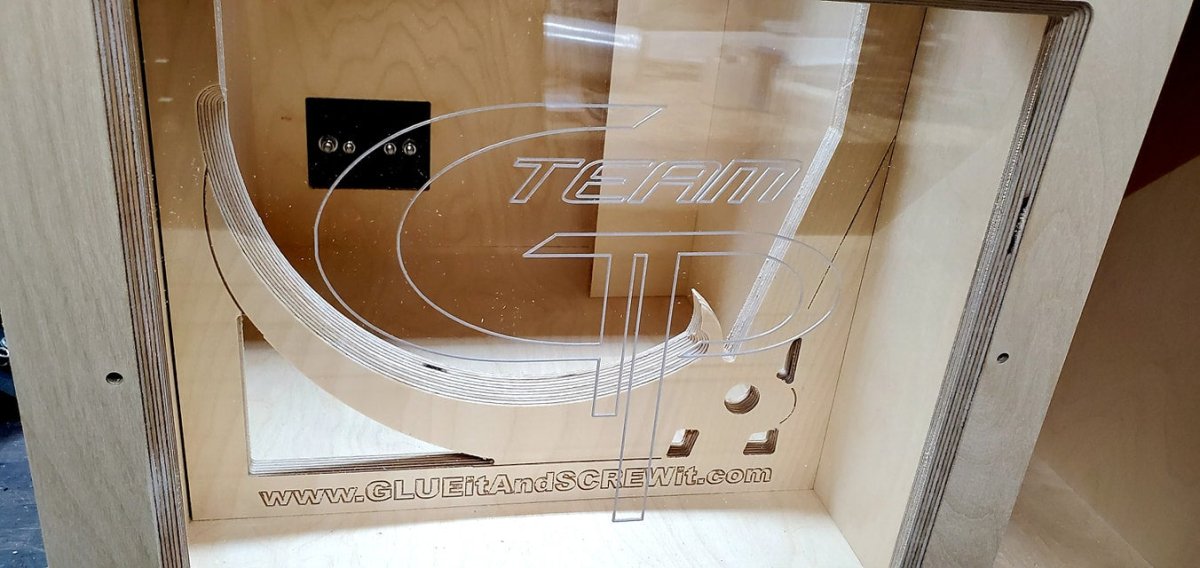

GP ELITE Single 10" Compact Glue it & Screw It Sub Enclosure
GP ELITE Single 10" Compact Glue it & Screw It Sub Enclosure
Regular price
$195.00 USD
Regular price
Sale price
$195.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Description

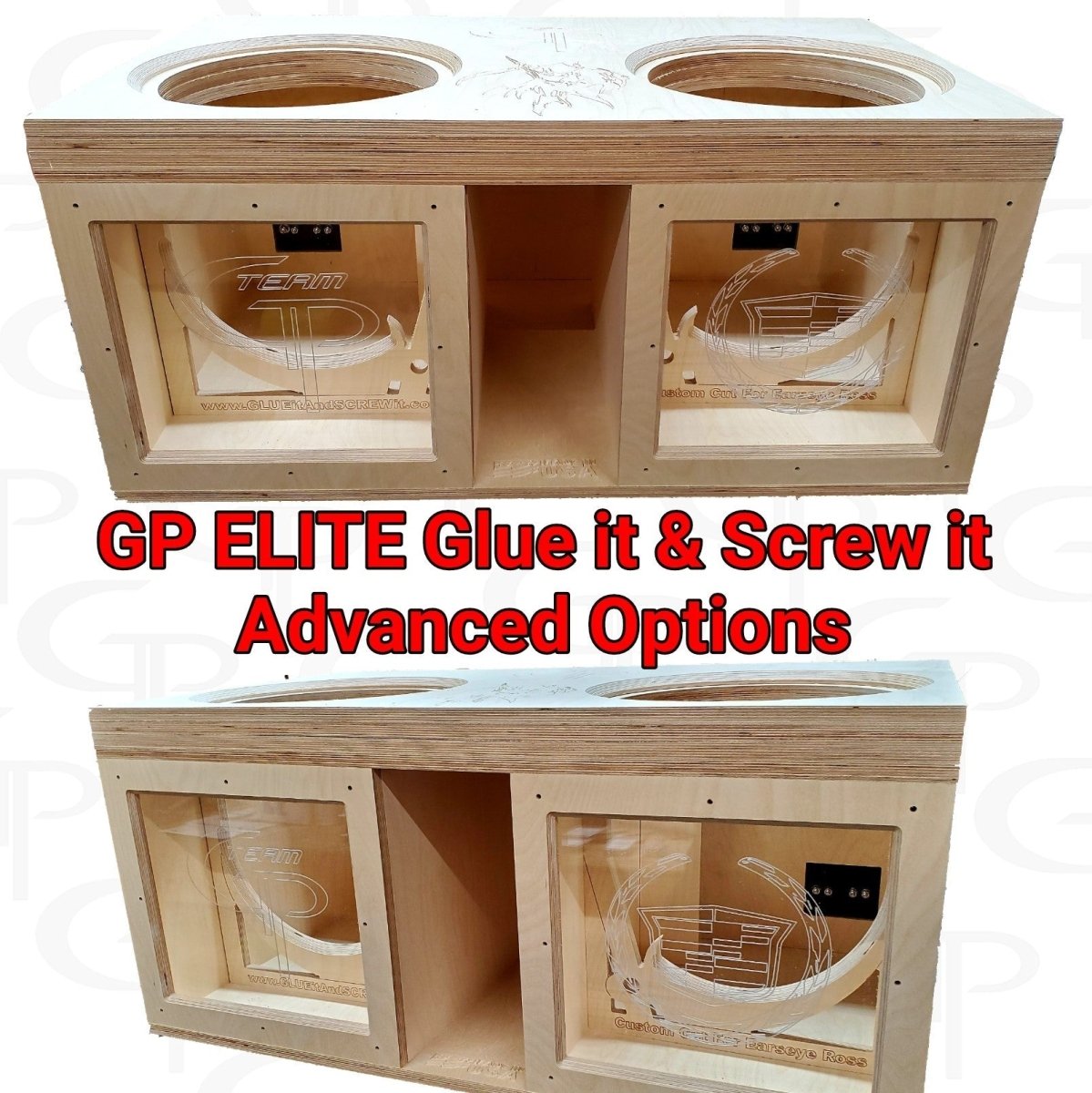

GP Elite Advanced Options
NOTE* Below is estimated enclosure dimensions. Tuning will change the enclosure sizes slightly. Based off your options chosen, if anything is drastically different from the dimensions noted below, we will call you to verify fitment.
*Assembly Required*
NOTE* Tuning will change the enclosure sizes slightly.
____________________________
37hz
Box External Dimensions Width x Height x Depth |
18.00" x 12.50" x 14.34" |
Material Thickness | 0.75" |
Net Internal Volume | 1.00 ft3 |
Tuning Frequency | 37 Hz |
Port Area | 11.00 inch2 |
Port Inlet Width x Height |
1.00" x 11.00" |
Port Length | 17.60" |
____________________________
35hz
Box External Dimensions Width x Height x Depth |
18.00" x 12.50" x 14.61" |
Material Thickness | 0.75" |
Net Internal Volume | 1.00 ft3 |
Tuning Frequency | 35 Hz |
Port Area | 11.00 inch2 |
Port Inlet Width x Height |
1.00" x 11.00" |
Port Length | 20.15" |
____________________________
33hz
Box External Dimensions Width x Height x Depth |
18.00" x 12.50" x 14.94" |
Material Thickness | 0.75" |
Net Internal Volume | 1.00 ft3 |
Tuning Frequency | 33 Hz |
Port Area | 11.00 inch2 |
Port Inlet Width x Height |
1.00" x 11.00" |
Port Length | 23.17" |
____________________________
31hz
Box External Dimensions Width x Height x Depth |
18.00" x 12.50" x 15.37" |
Material Thickness | 0.75" |
Net Internal Volume | 1.00 ft3 |
Tuning Frequency | 31 Hz |
Port Area | 11.00 inch2 |
Port Inlet Width x Height |
1.00" x 11.00" |
Port Length | 26.79" |
____________________________
29hz
Box External Dimensions Width x Height x Depth |
23.00" x 12.50" x 12.57" |
Material Thickness | 0.75" |
Net Internal Volume | 1.00 ft3 |
Tuning Frequency | 29 Hz |
Port Area | 11.00 inch2 |
Port Inlet Width x Height |
1.00" x 11.00" |
Port Length | 31.19" |
